🔹 Object

After creating the topology, users can define the assets, such as "Pump", "Meter",...etc, of each group. We call an assert as an Object. To add an object, please refer to the following steps:

Add object

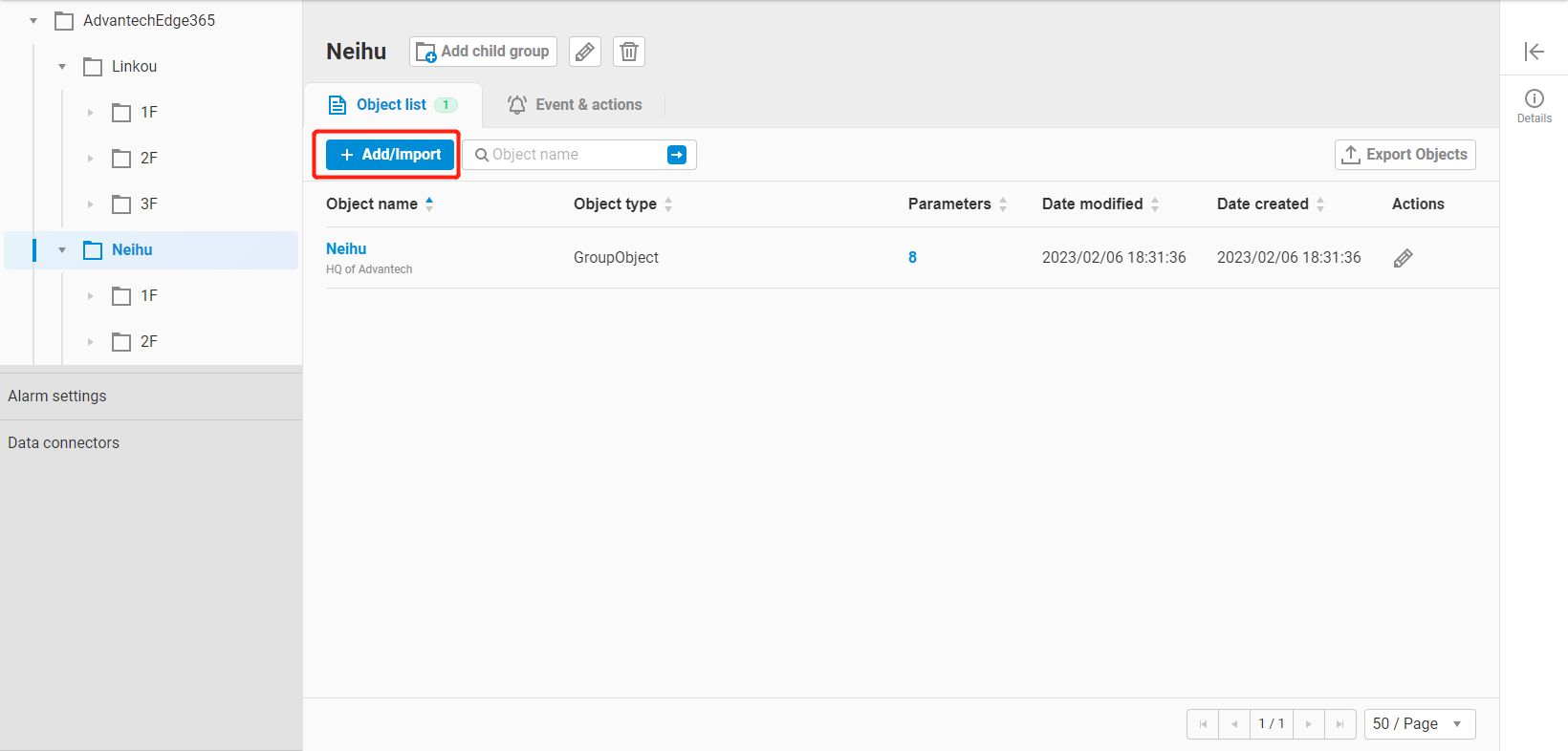

1. On Object list, click the Add/Import button

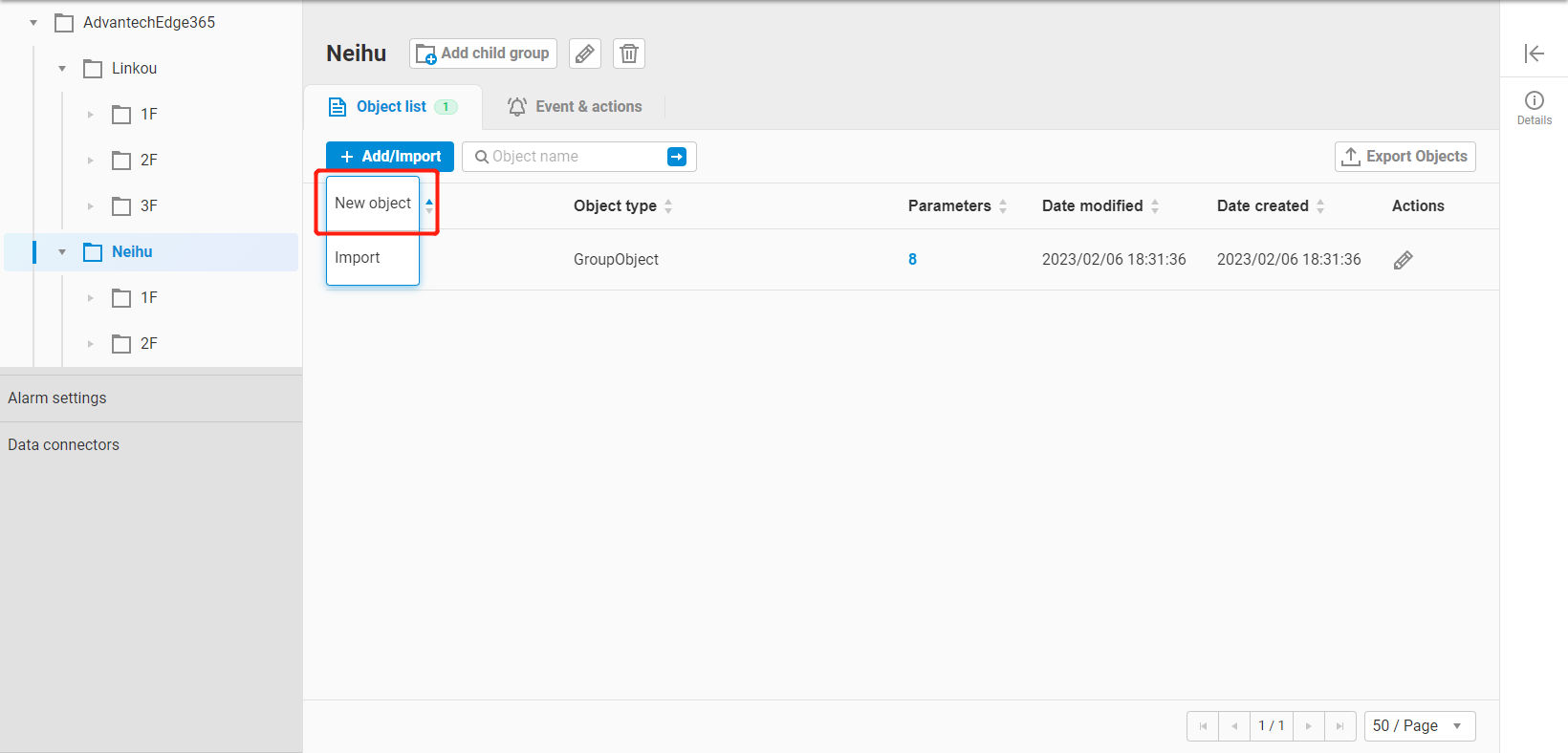

2. Select New object

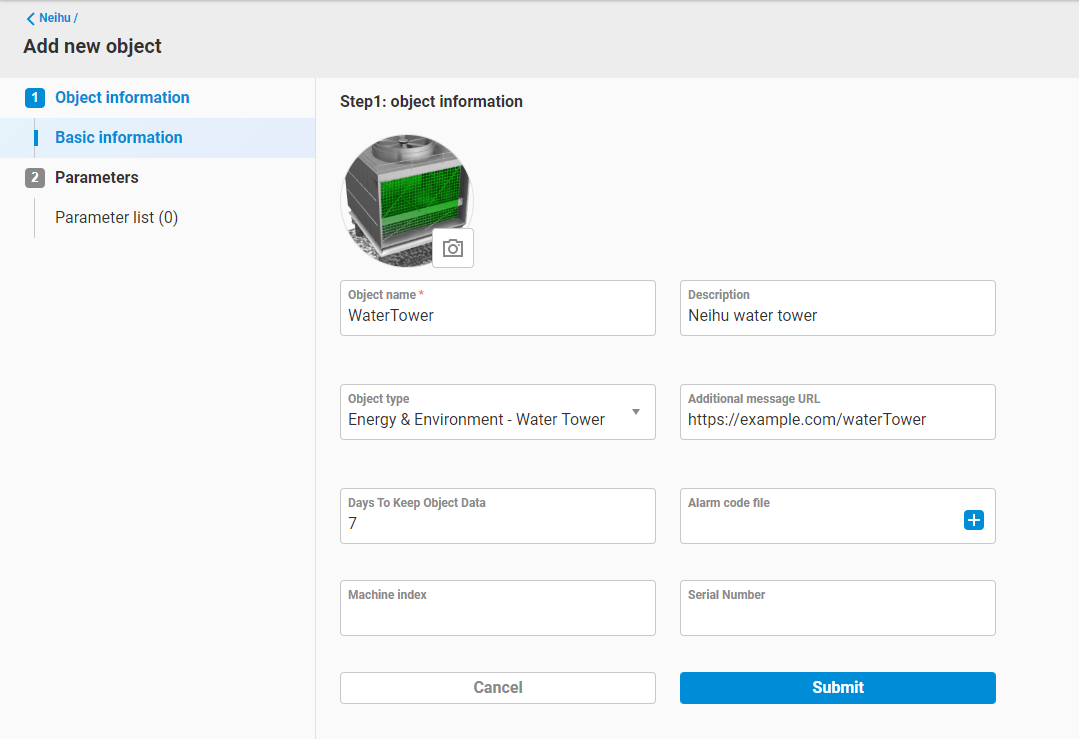

3. Edit object's basic information, includes

   • Object name
   • Description
   • Object type
   • Additional message URL ()
   • Days to keep object data
   • Alarm code file
   • Machine index
   • Serial number
   • Object image



4. Submit the result

5. A new object has been created
