🔹 Tenant User

Changelog

Version	Author	Update Date	Comment
1.0.0	ITsung.Shen	2023-11-30	First Version
1.0.3	ITsung.Shen	2024-07-10	Update description of Chapter 3.1~3.4
2.0.0	ITsung.Shen	2025-06-26	Add Chapter 3.5 / 3.6Update Chapter 3 with Direct Access scopesUpdate 3.1 Home page with direct access

1. Introduction

Tenant user is used to define who can enter the tenant space and use various functions in the tenant. For each added Tenant user, role can be set to limit the user's access to each function.Tenant admin can use the function User Management -> Tenant Users to add or edit Tenant User and User's Role.

2. Add / Edit tenant user

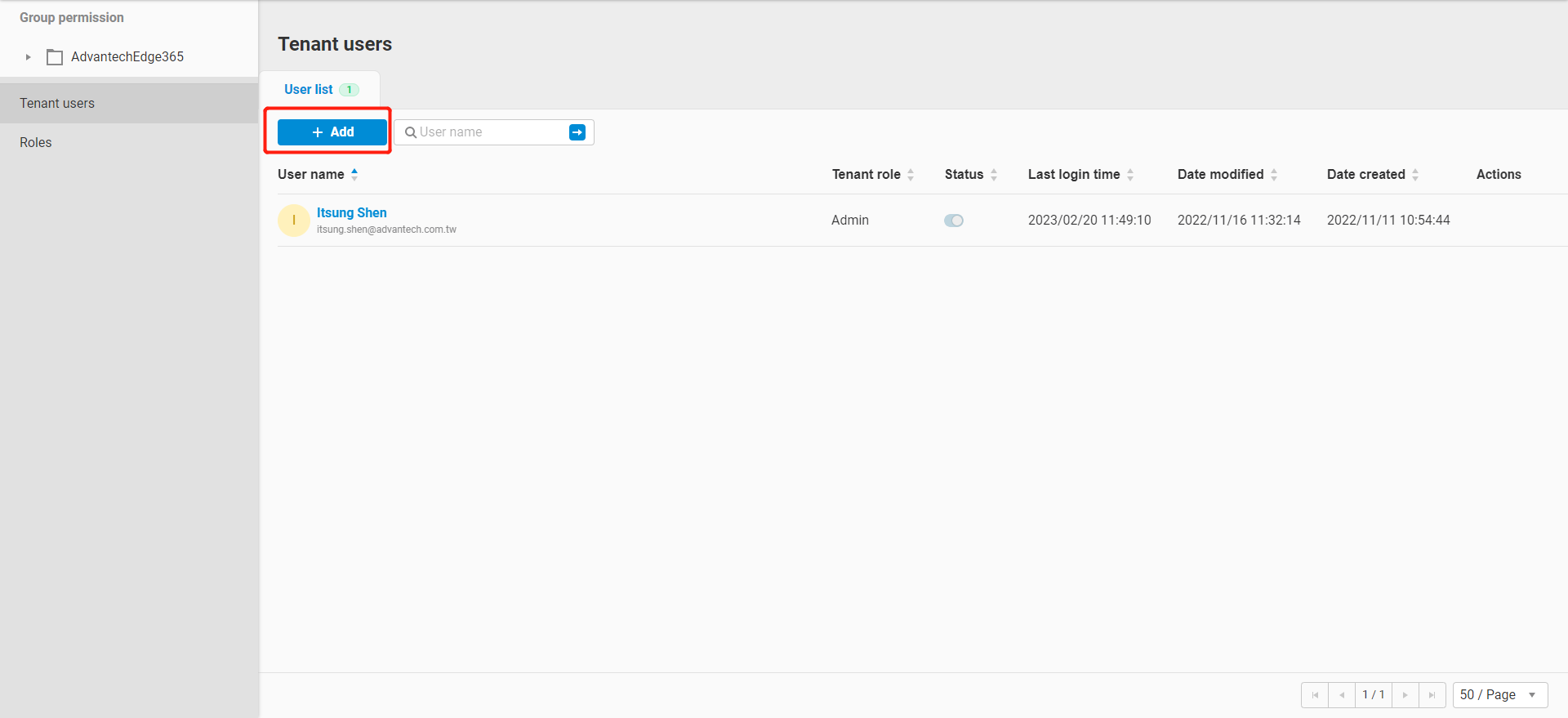

1. Click Add button of Tenant users page

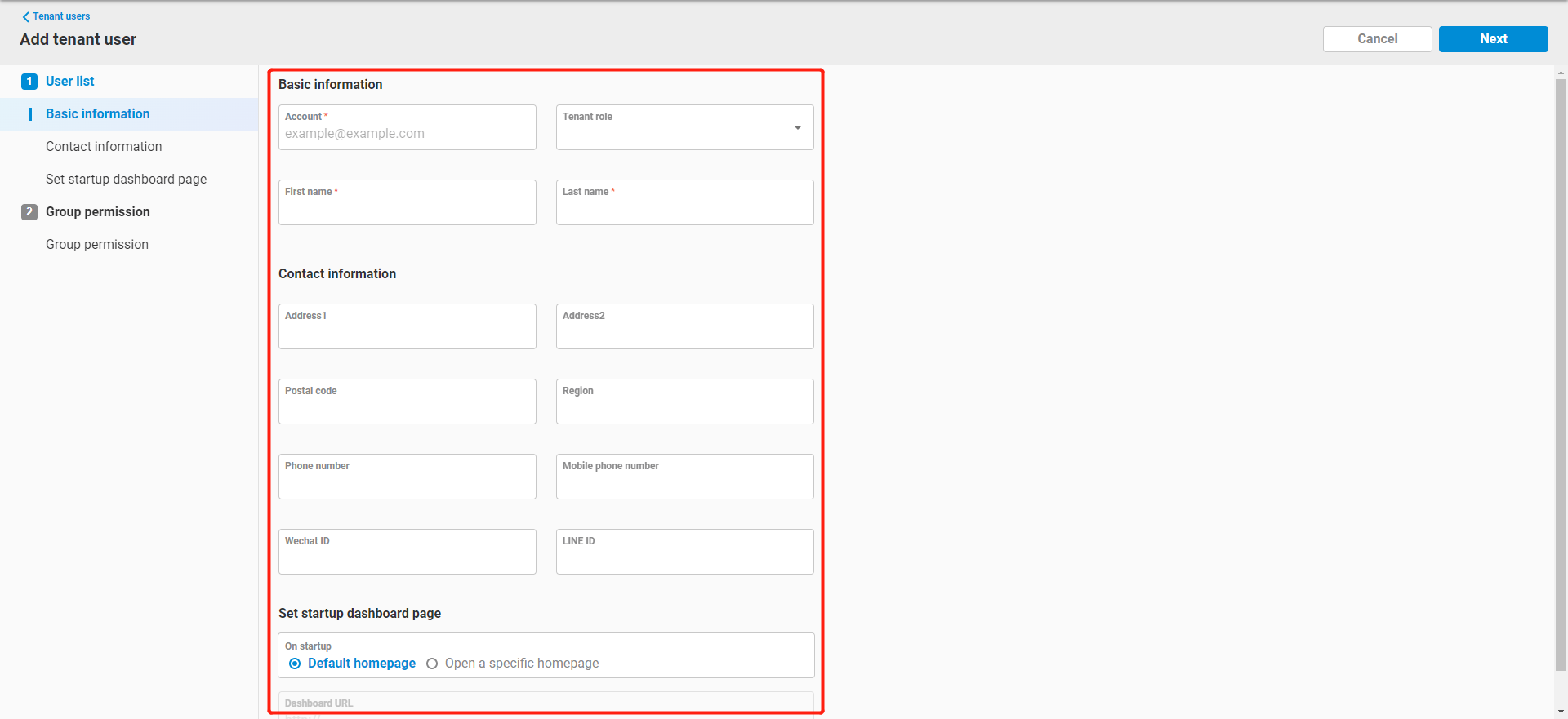

2. Fill up the basic information of this user

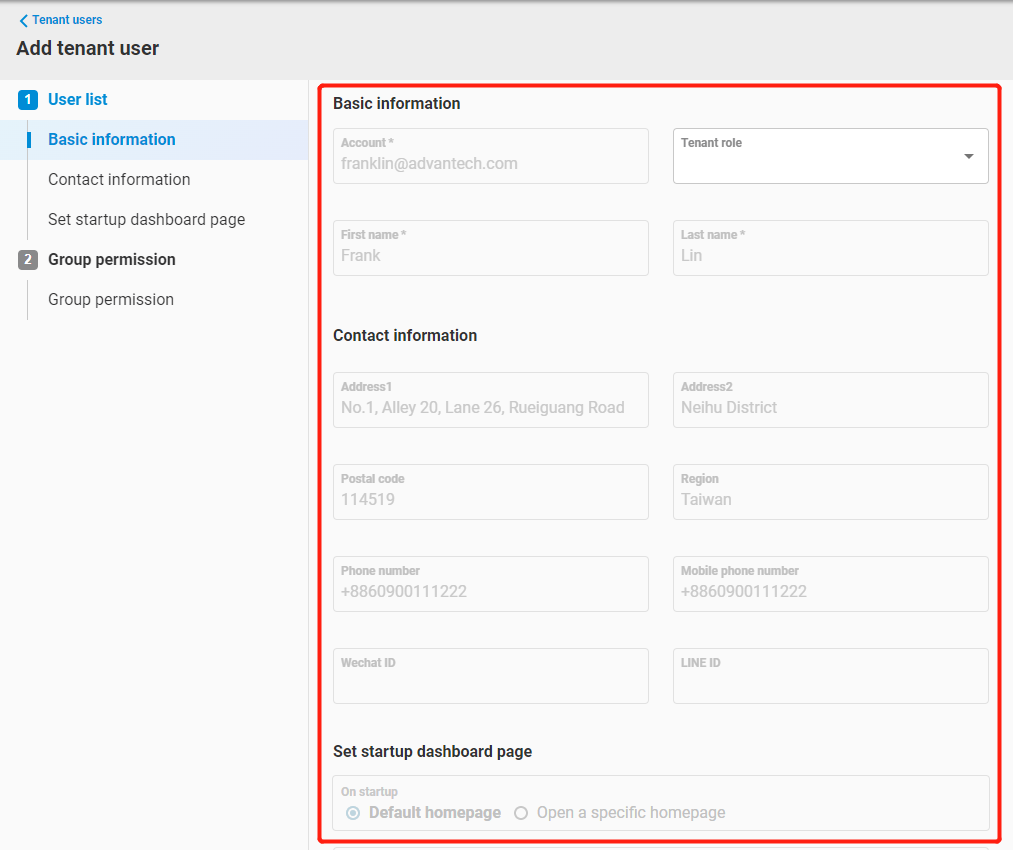

3. If the user is already existed in EdgeHub platform, the portal will automatically fill up the basic information.

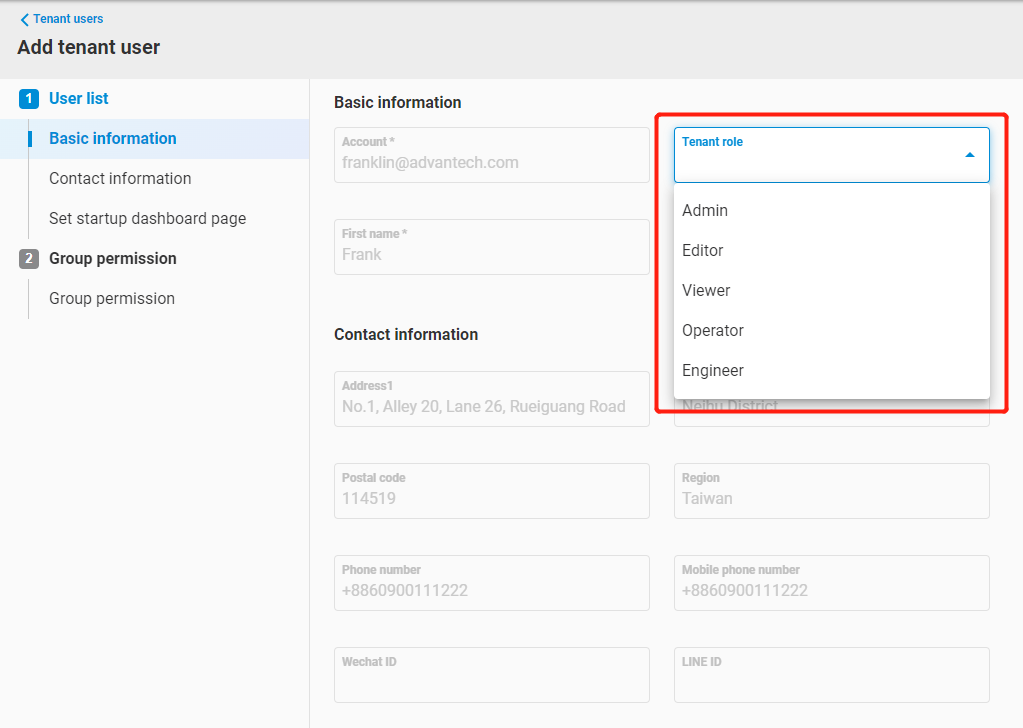

4. Set the tenant role of this user. EdgeHub provide five default roles

   • Admin
   • Editor
   • Engineer
   • Operator
   • Viewer

We will discuss about the relationship between role and EdgeHub function in next section.

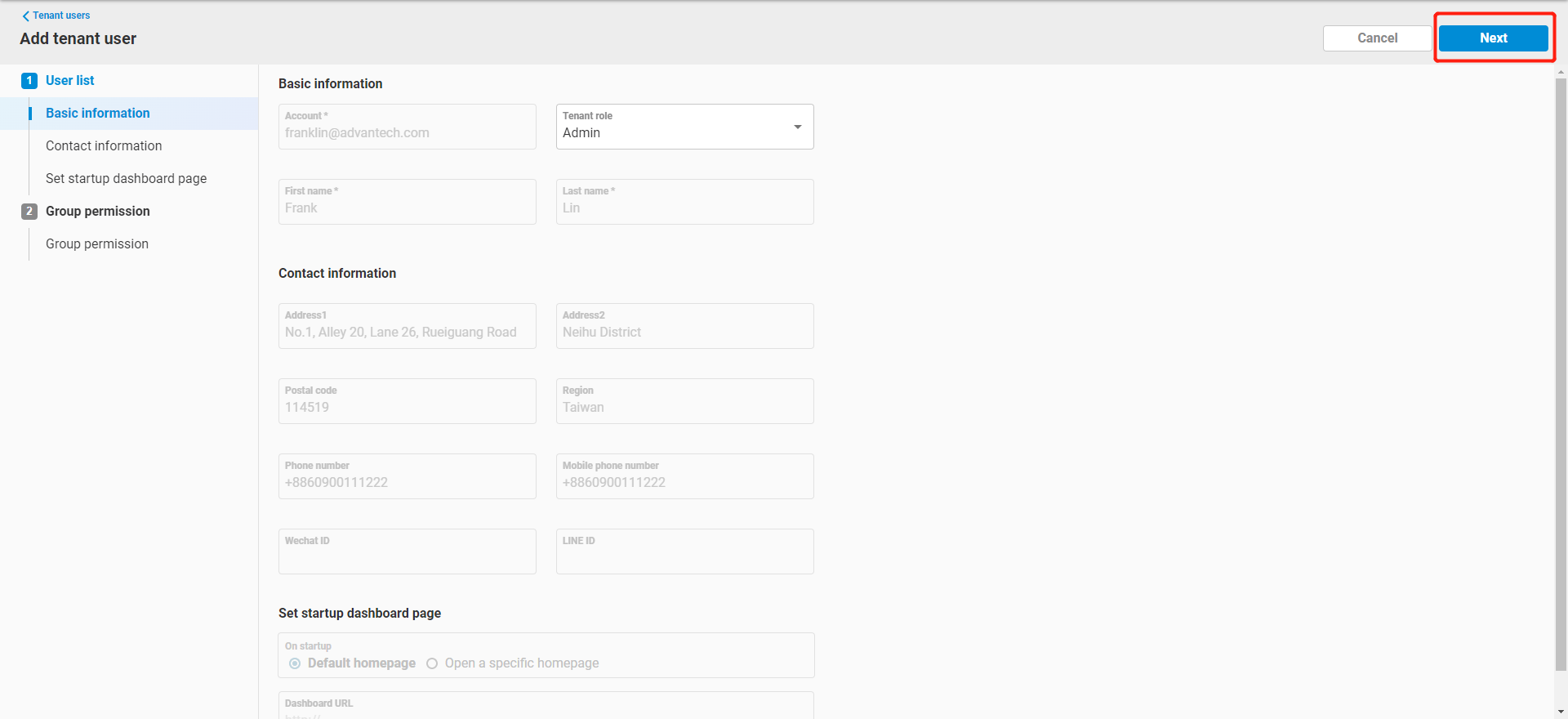

5. Click Next to set Group permission

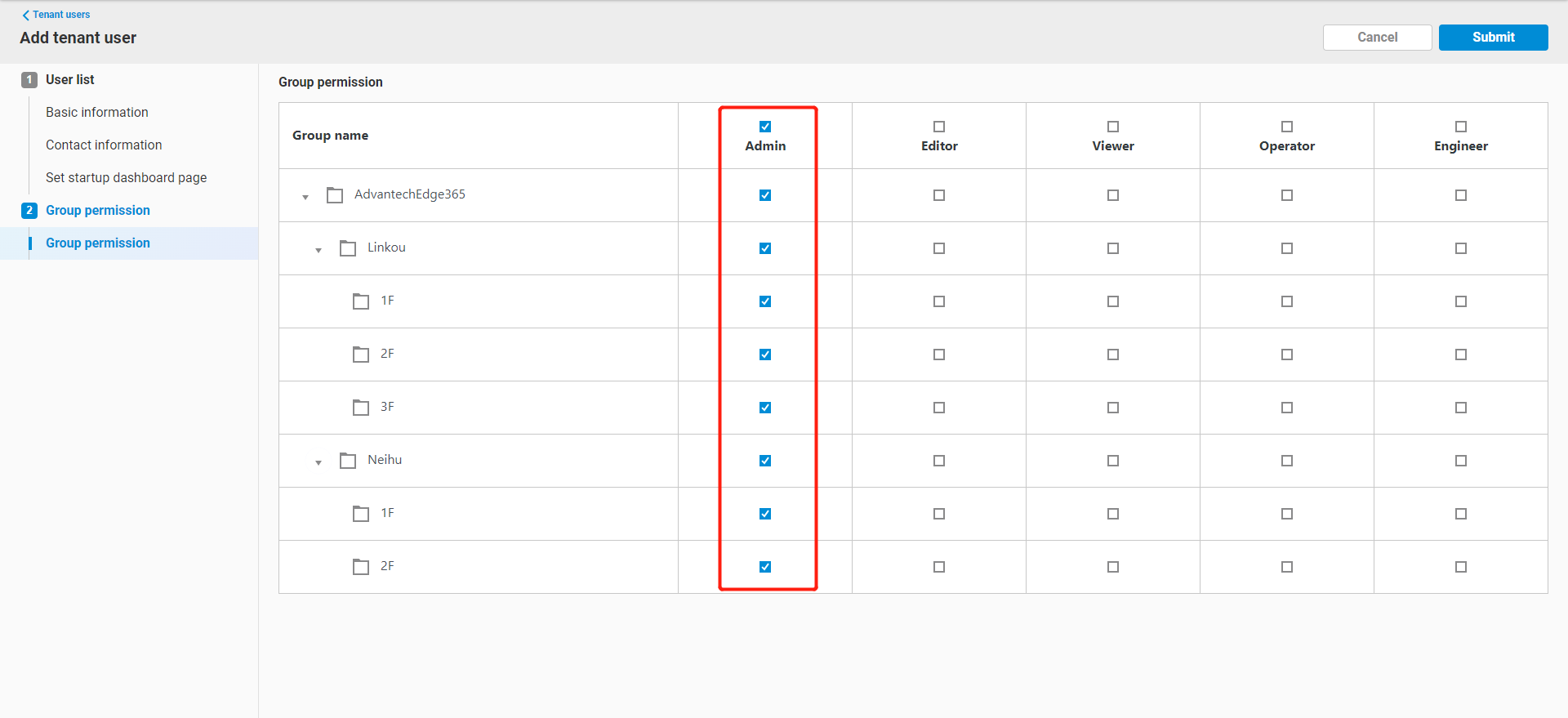

6. Set this user's group role in each group. In this example, we add this user into all group and give the user a group role as Admin for each group.

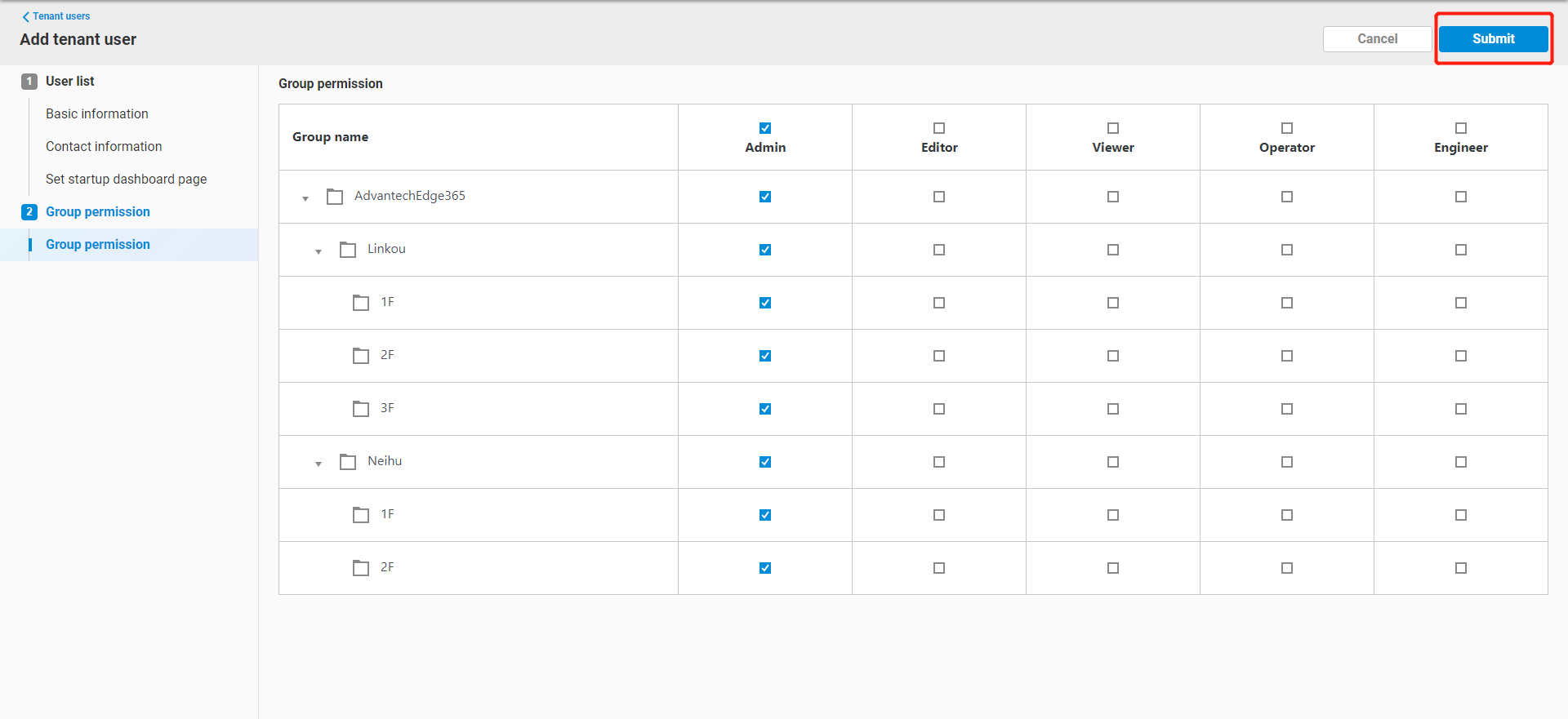

7. Click submit to add this user

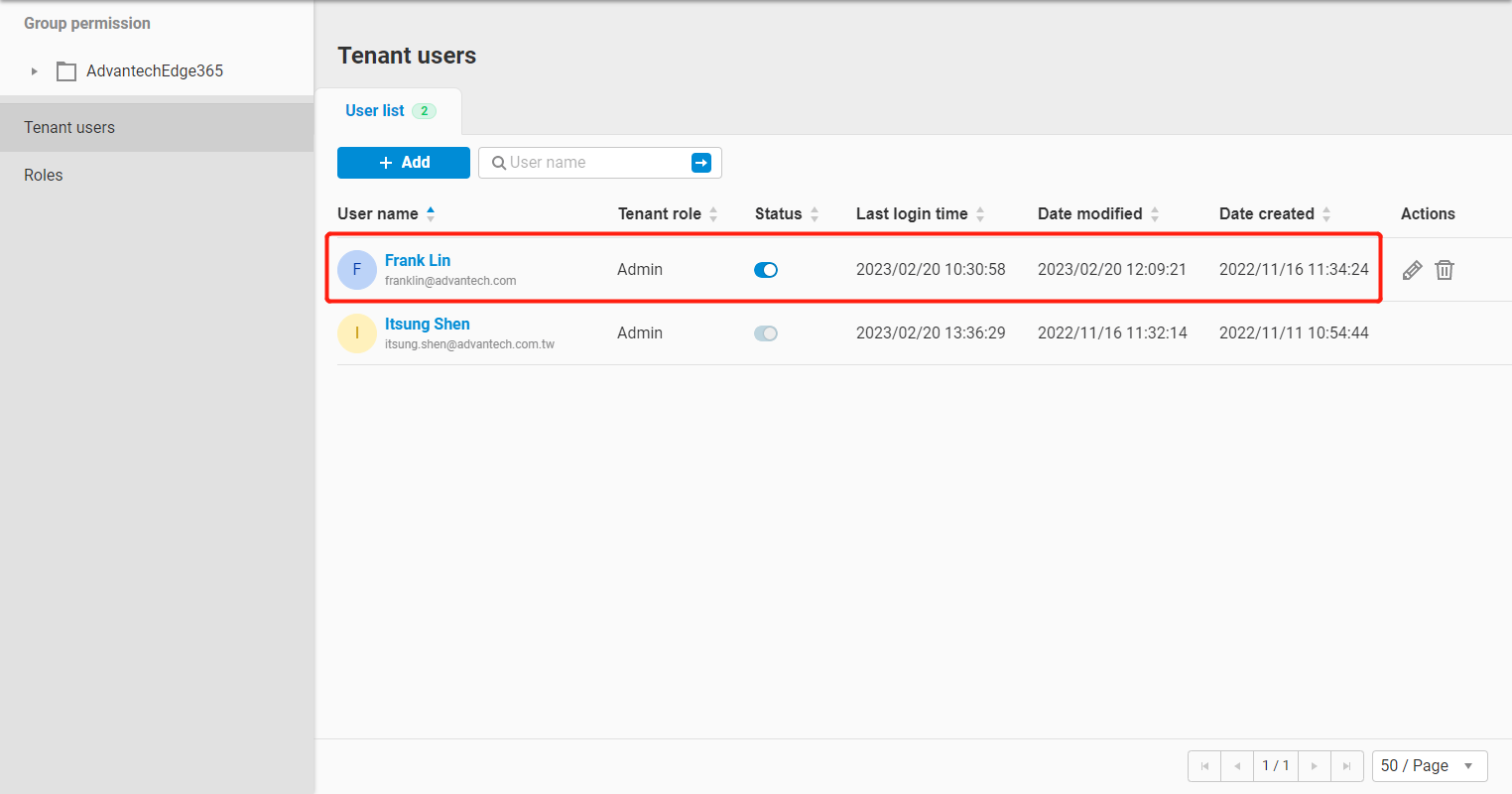

8. Create user successfully.

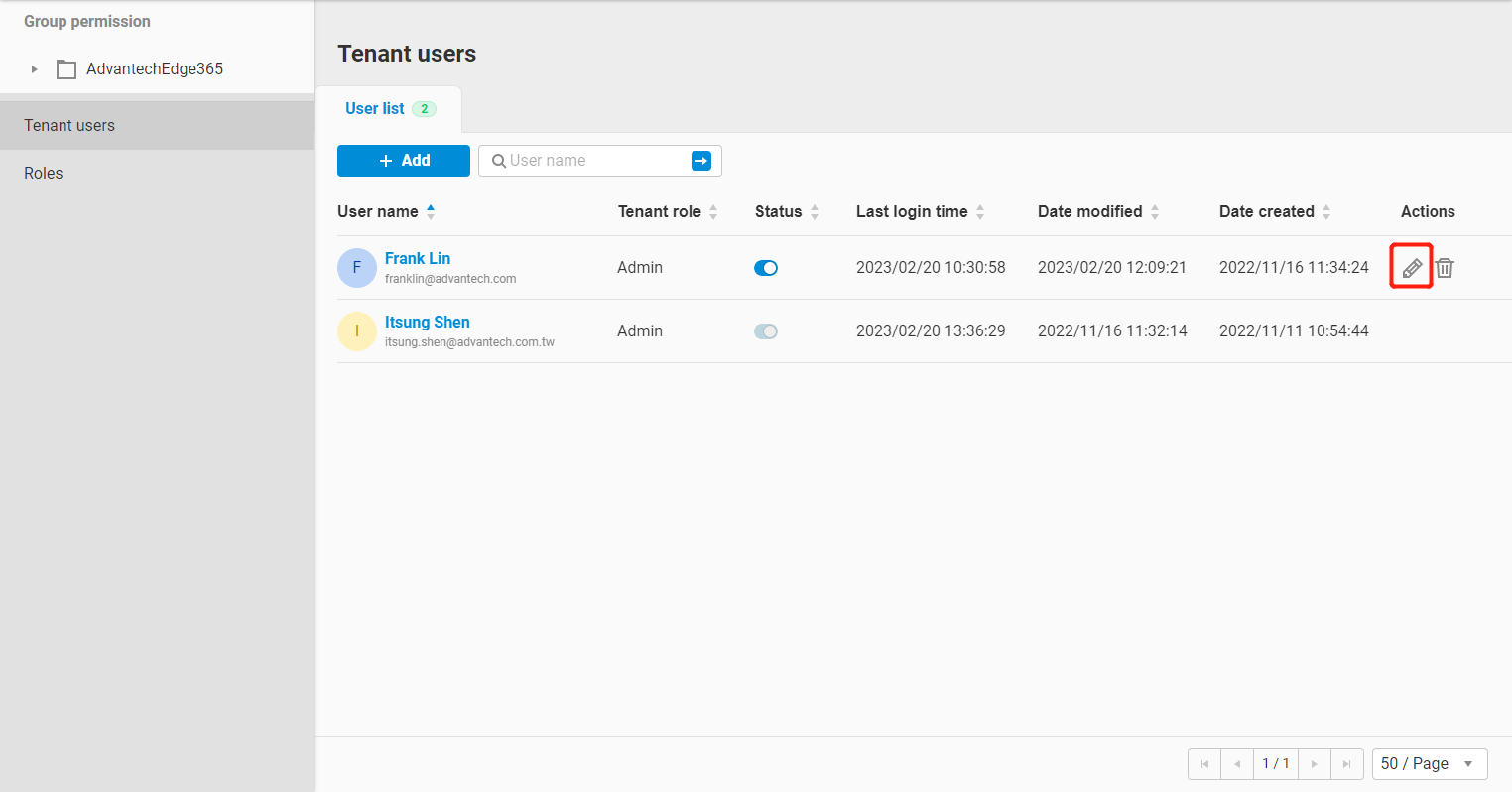

9. In Tenant user list, you can click edit button to edit a user

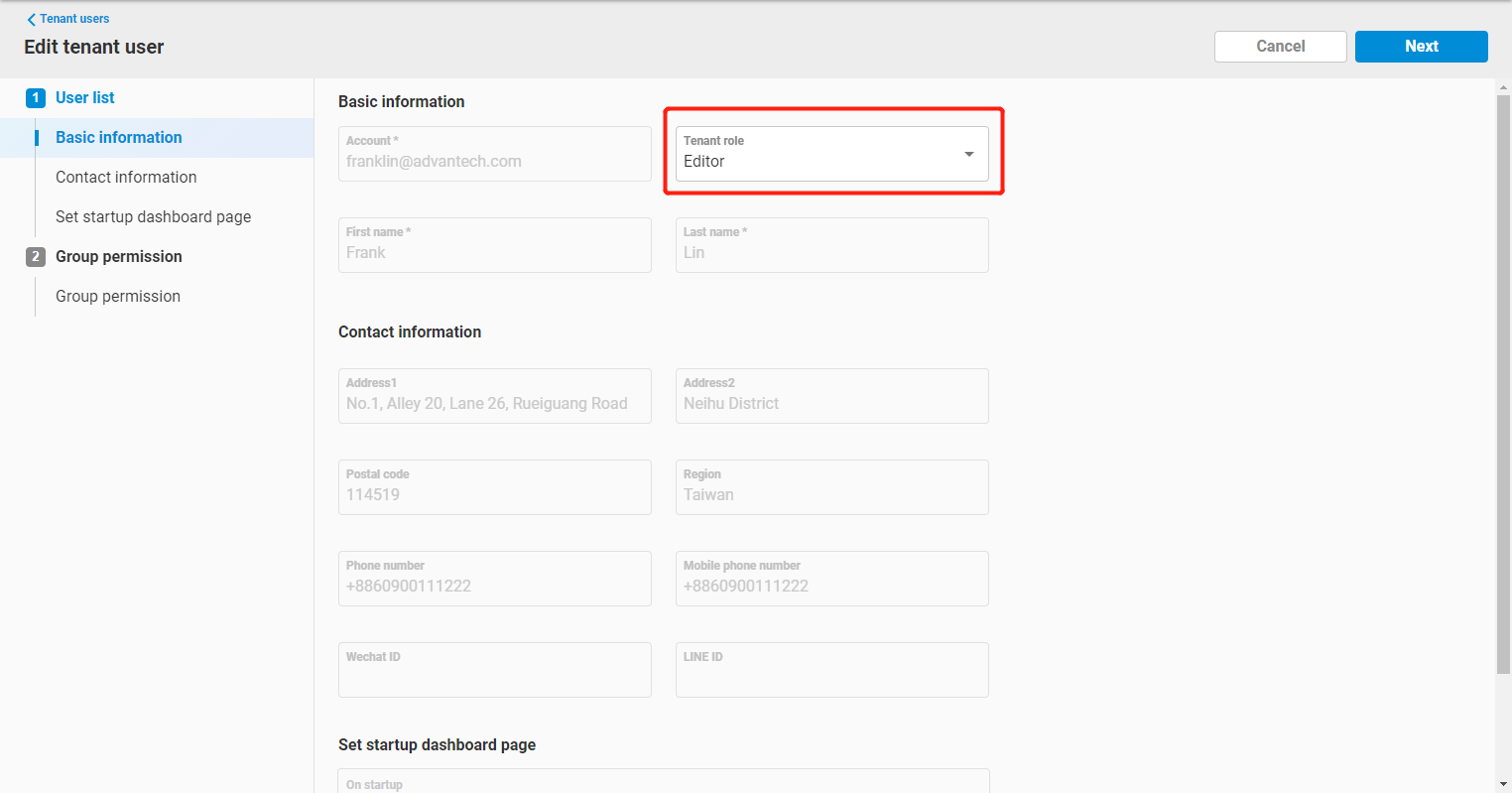

10. In Edit tenant user page, you can change role of this user

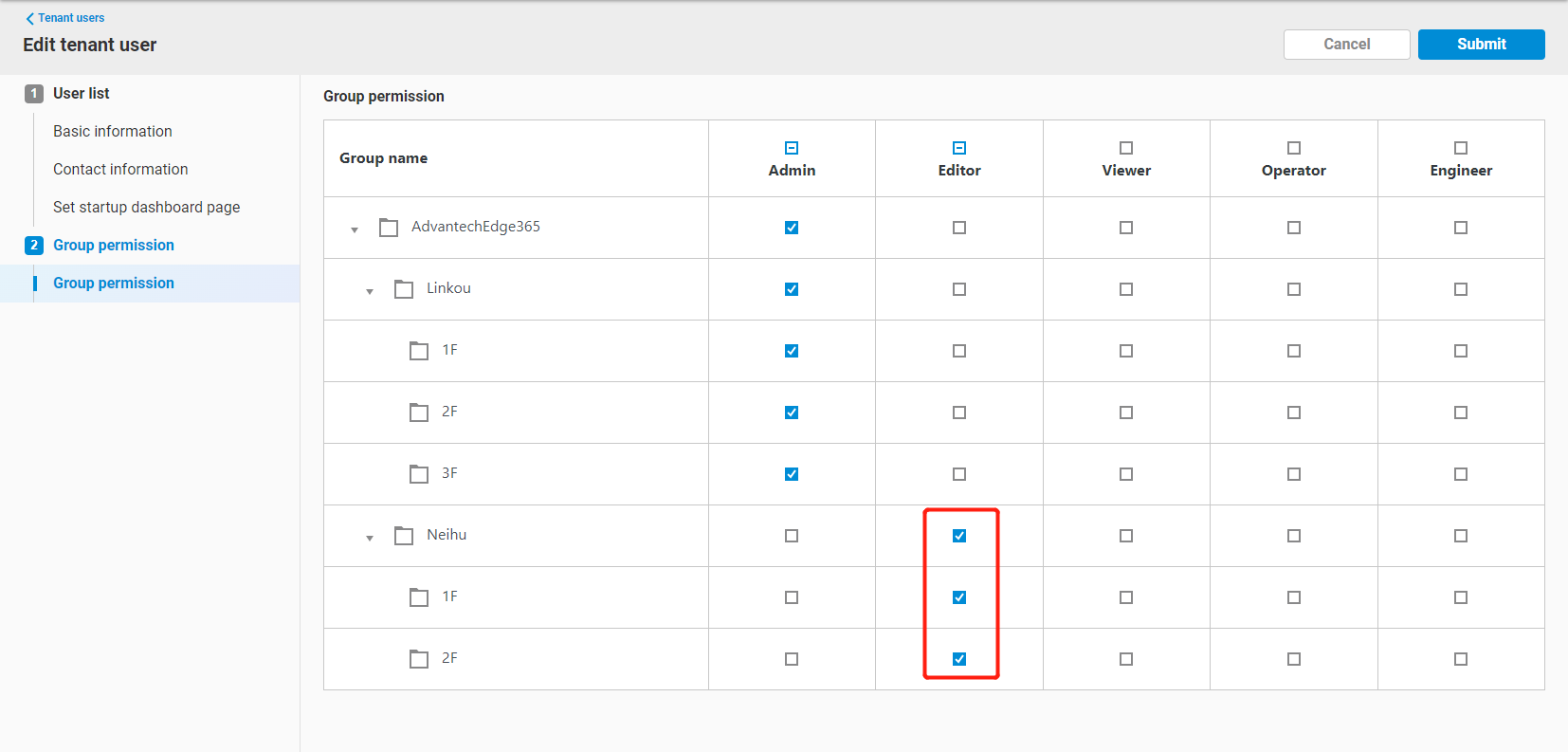

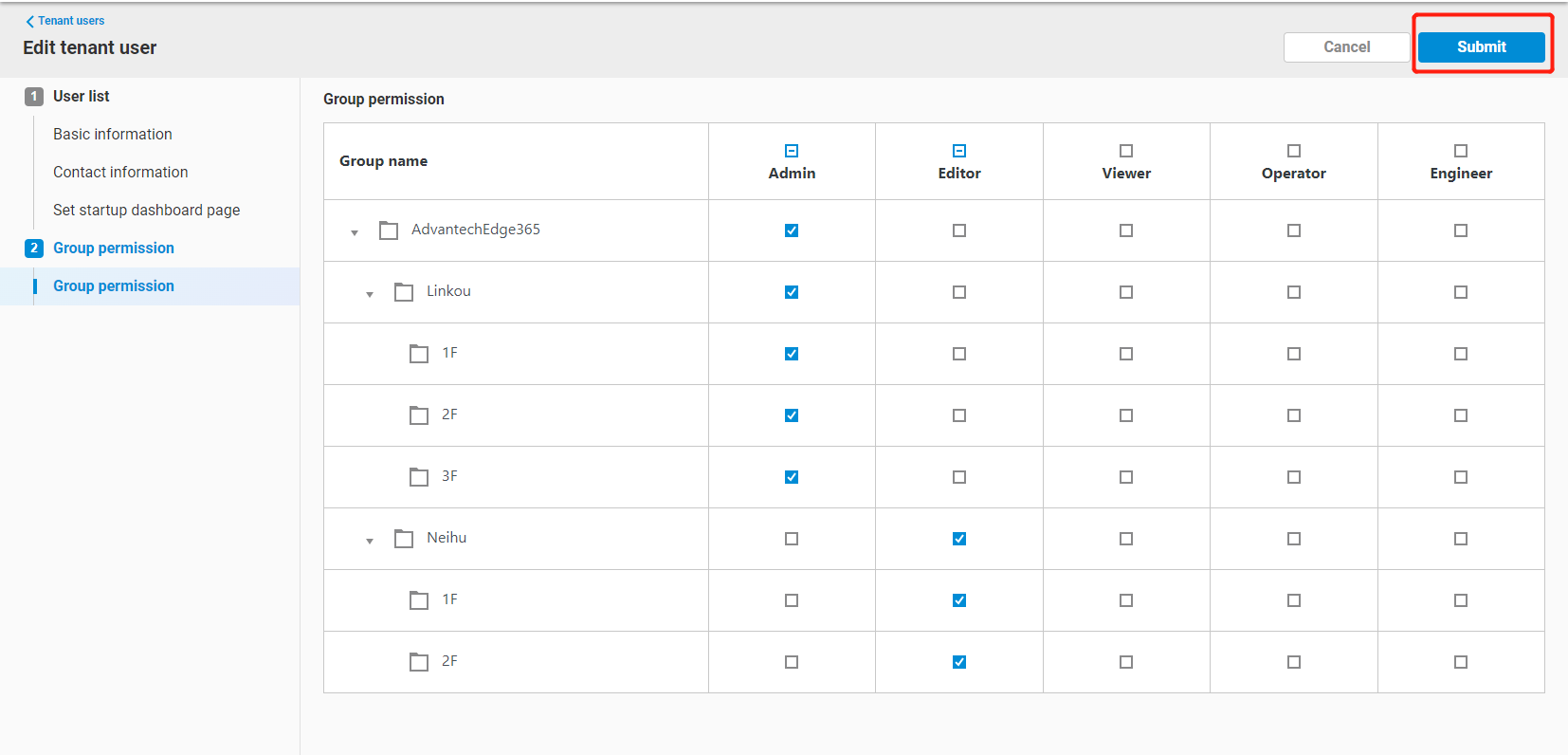

11. Same as step 6, you can change group role of this user. In this example, we change some group's role as Editor for this user.

12. Click Submit to modify this user.

3. Tenant Role & EdgeHub Functionalities

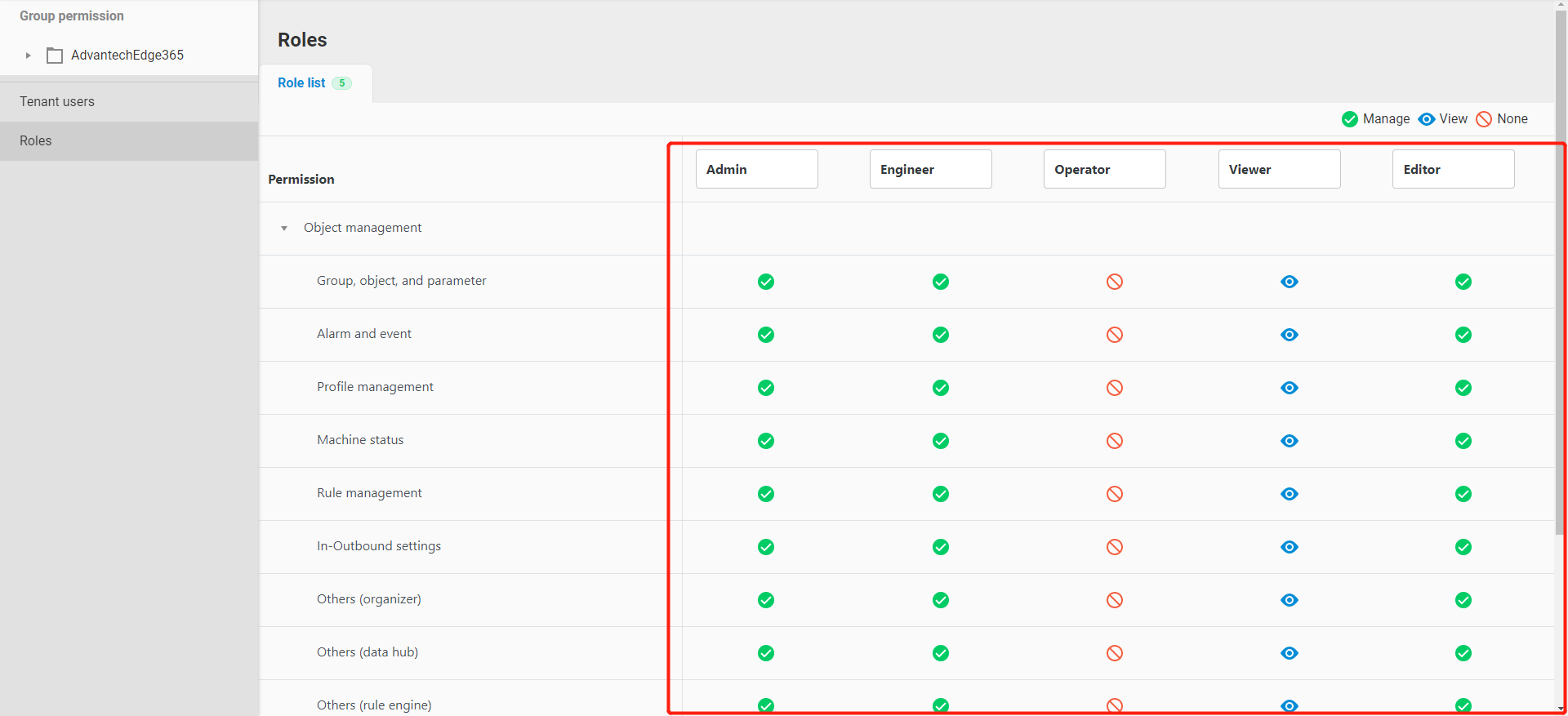

For the five default roles provided by EdgeHub, each role will have corresponding Permission Scopes configuration, which include:

Category	Scope Display Name	Description
Common functions	Alarm and Event	Alarm related operation
Device management	Device management	Device management operation
Object management	Group, Object, and Parameter	Group/object/parameter related operation
Object management	Profile Management	Operation of Profile Management
Object management	Plugin	Data plugin operation
Object management	Machine Status	Operation of Machine Status (iFactory Pivot environment only)
Object management	Rule Management	Operation of Rule Management (iFactory Pivot environment only)
Object management	Others (Data Hub)	(System usage)
Object management	Others (Rule Engine)	(System usage)
User managemnt	User List	User related operation in User management
User managemnt	Client List	(System usage)
User managemnt	Role List	Role related operation in User management
Command Center	Command Center Settings	Command Center operation
Command Center	Dashboard & Menu List	Dashboard & Menu operation in Command center
Advanced settings	License	License setting in Advance Settings
Advanced settings	General	General setting in Advance Settings
WISE-IoTSuite/Dashboard	Value and Alarm	Operate value & alarm in Dashboard (Not yet available)
WISE-IoTSuite/Dashboard	Operation Log	Operation Log in Dashboard (Not yet available)
Direct Access - EPN	Server Management	EPN Server related operation
Direct Access - EPN	Device Configuration	EPN Device related operation
Direct Access - EPN	Terminal Configuration	EPN Terminal related operation
Direct Access - EPN	(Utility) EpnClient operation	EpnClient related operation on EdgeHub utility
Direct Access - EPN	(Cloud) EpnClient management	EpnClient related operation on Direct Access portal

The value of the scope affect the usability of the corresponding EdgeHub functions.

• The value of the scope include:
  • Manage (CRUD)
  • View (View only)
  • None (No permission)

In this section, we talk about the relationship between tenant role and EdgeHub functionalities

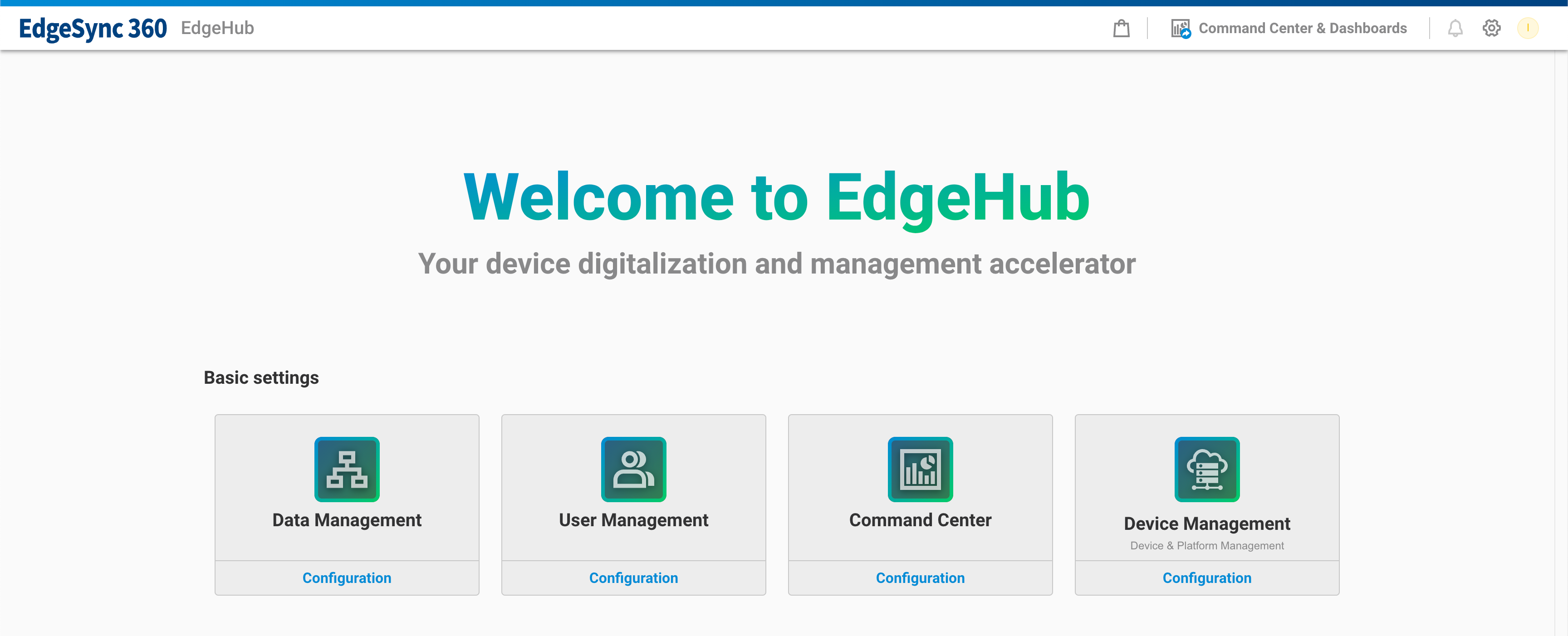

3.1 Home Page & header functions

Tenant role of a user affect that whether this user can access into the function on Home page or not. Affected functions includes:

• [Home Page] Data Management
  • The user, whose tenant role has one of the following scope permissions (Manage or View), can access this funciton.
    • Group, Object, and Parameter
    • Alarm and Event
    • Profile Management
    • Plugin
    • Machine Status
    • Rule Management
• [Home Page] User Management
  • The user, whose tenant role has one of the following scope permissions (Manage or View), can access this funciton.
    • User List
    • Client List
    • Role List
• [Home Page] Command Center
  • The user, whose tenant role has one of the following scope permissions (Manage or View), can access this funciton.
    • Command Center Settings
    • Dashboard & Menu List
• [Home Page] Device Management
  • In current version, this function is affected by Group user role. Please refer to the article of Group User
• [Header Function] Advanced settings
  • The user, whose tenant role has one of the following scope permissions (Manage or View), can access this funciton.
    • License
    • General
• [Header Function] Tenant management
  • The user who has the tenant role of Admin can access this funciton.
• [Home Page] Direct Access
  • The user, whose tenant role has one of the following scope permissions (Manage or View), can access this funciton.
    • Server Management
    • Device Configuration
    • Terminal Configuration
    • (Cloud) EpnClient management

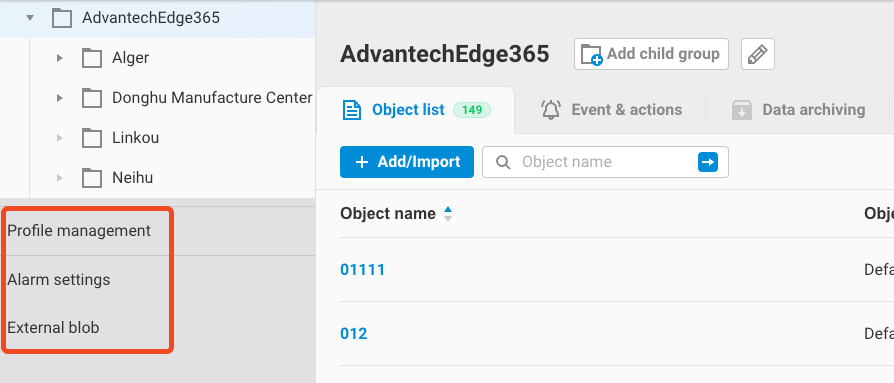

3.2 Data Management

Some functions's accessability are affected by tenant role, includes:

Function	Related scope	Admin	Engineer	Editor	Operator	Viewer
Profile management	Profile management	Manage	Manage	Manage	None	View
Alarm setting	Alarm and Event	Manage	Manage	Manage	None	View
External blob	Group, object, and parameter	Manage	Manage	Manage	None	View
Plugin	Plugin	Manage	Manage	Manage	None	View

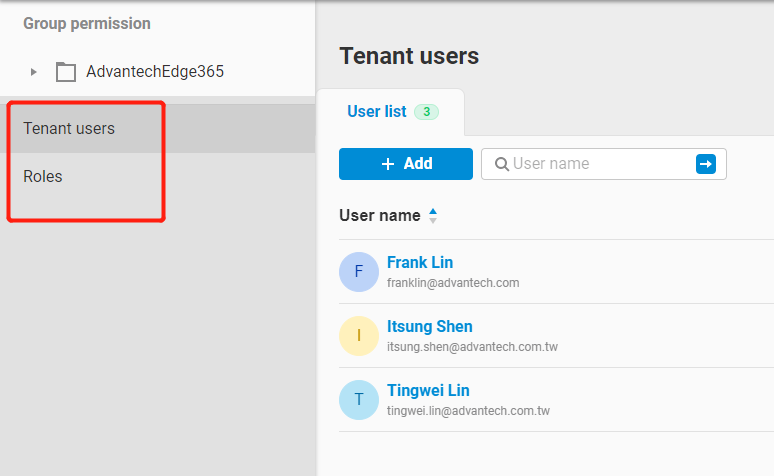

3.3 User Management

Some functions's accessability are affected by tenant role, includes:

Function	Related scope	Admin	Engineer	Editor	Operator	Viewer
Tenant Users	User List	Manage	None	View	None	View
Roles	Role List	Manage	None	View	None	View

Note: The Roles function currently only supports displaying the Role list. Other functions (add, edit, delete roles) are not yet supported.

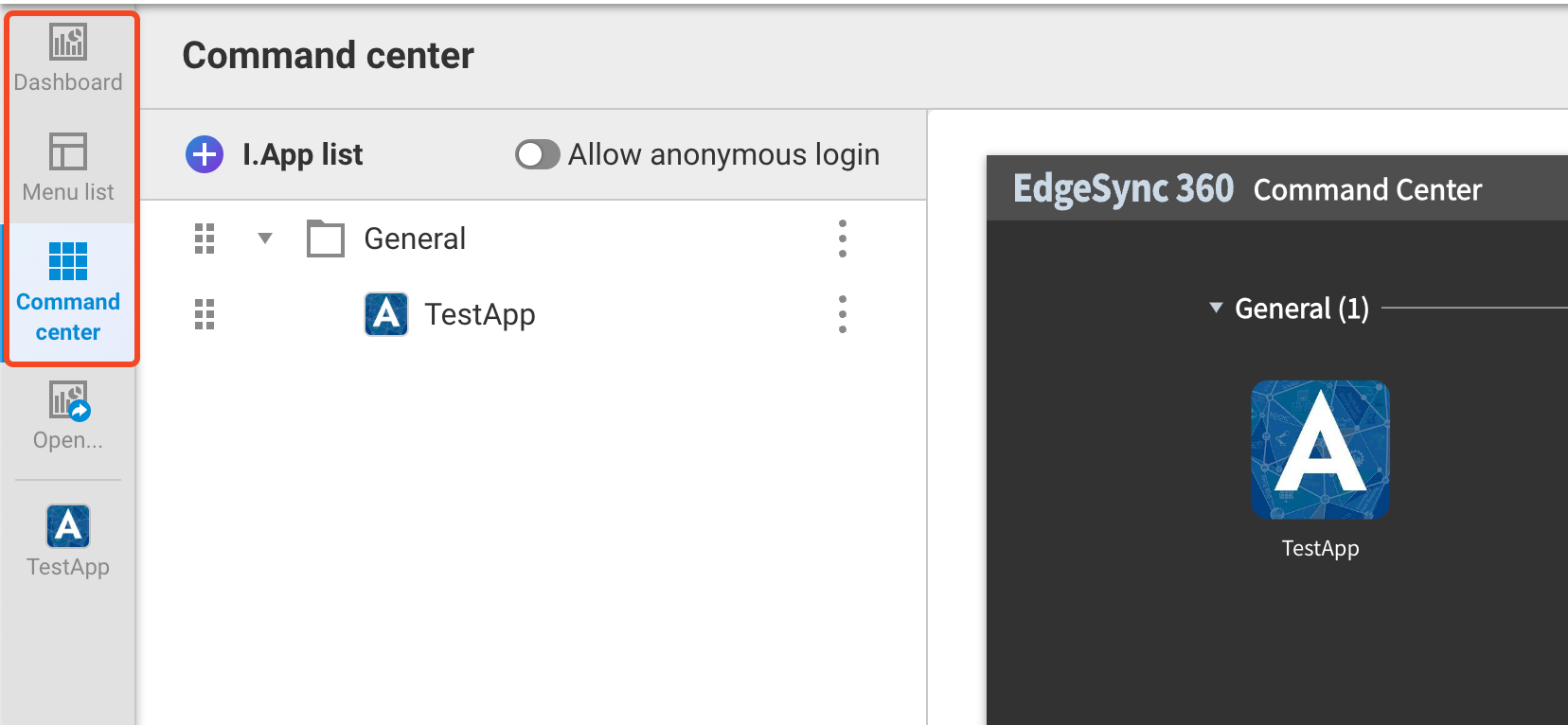

3.4 Command Center

Some functions's accessability are affected by tenant role, includes:

Function	Related scope	Admin	Engineer	Editor	Operator	Viewer
Command center	Command Center Settings	Manage	Manage	Manage	None	View
Dashboard (Access in)	Dashboard & Menu List	Manage	Manage	Manage	None	View
Menu list	Dashboard & Menu List	Manage	Manage	Manage	None	View

Note: For Dashboard functionality, the tenant role only be used to determine whether this user can access into this function or not. The inner function of dashboard operation is affected by Group role of this user.

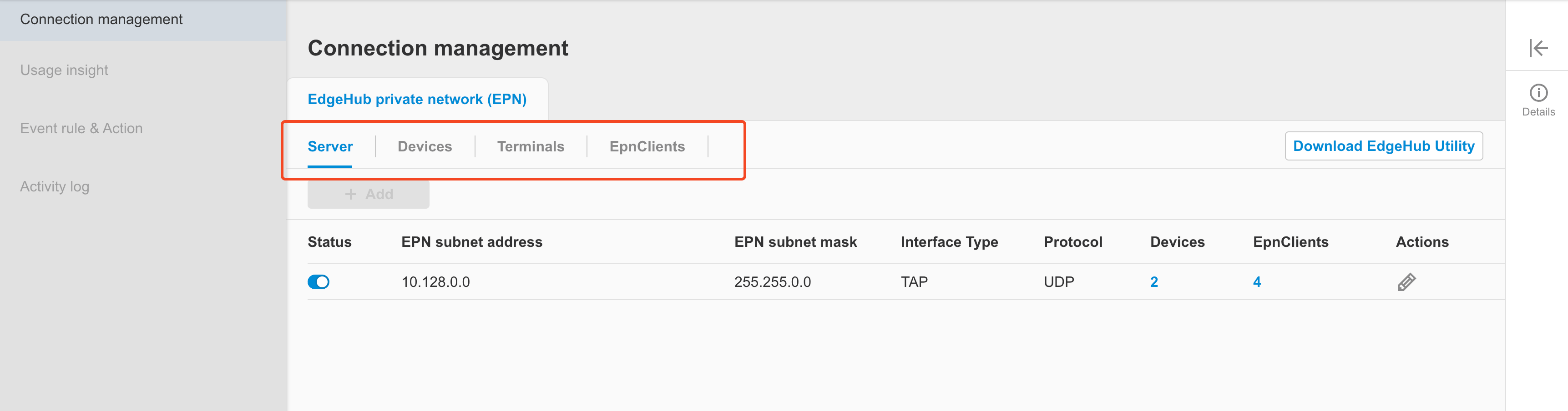

3.5 Direct Access

Some functions's accessability are affected by tenant role, includes:

Function	Related scope	Required scope permission
Server list	Server Management	Manage, View
Add / Edit server	Server Management	Manage
Delete server (while delete tenant)	-	Root tenant Admin or parent tenant Admin
Device list	Device Configuration	Manage, View
Device sync	Device Configuration	Manage
Edit device	Device Configuration	Manage
Enable / disable device or Bandwidth saver	Device Configuration	Manage
Create / Delete device (from DPM)	Device Configuration	Manage
Terminal list	Terminal Configuration	Manage, View
Add / Edit / Delete terminal	Terminal Configuration	Manage
EpnClient list	(Cloud) EpnClient management	Manage, View
Register / Edit / Delete EpnClient	(Cloud) EpnClient management	Manage
Enable / disable EpnClient or Bandwidth saver	(Cloud) EpnClient management	Manage

The following table shows how each scope mentioned above is configured under the default roles

Scope	Admin	Engineer	Editor	Operator	Viewer
Server Management	Manage	Manage	Manage	View	View
Device Configuration	Manage	Manage	Manage	View	View
Terminal Configuration	Manage	Manage	Manage	View	View
(Cloud) EpnClient management	Manage	Manage	Manage	View	View

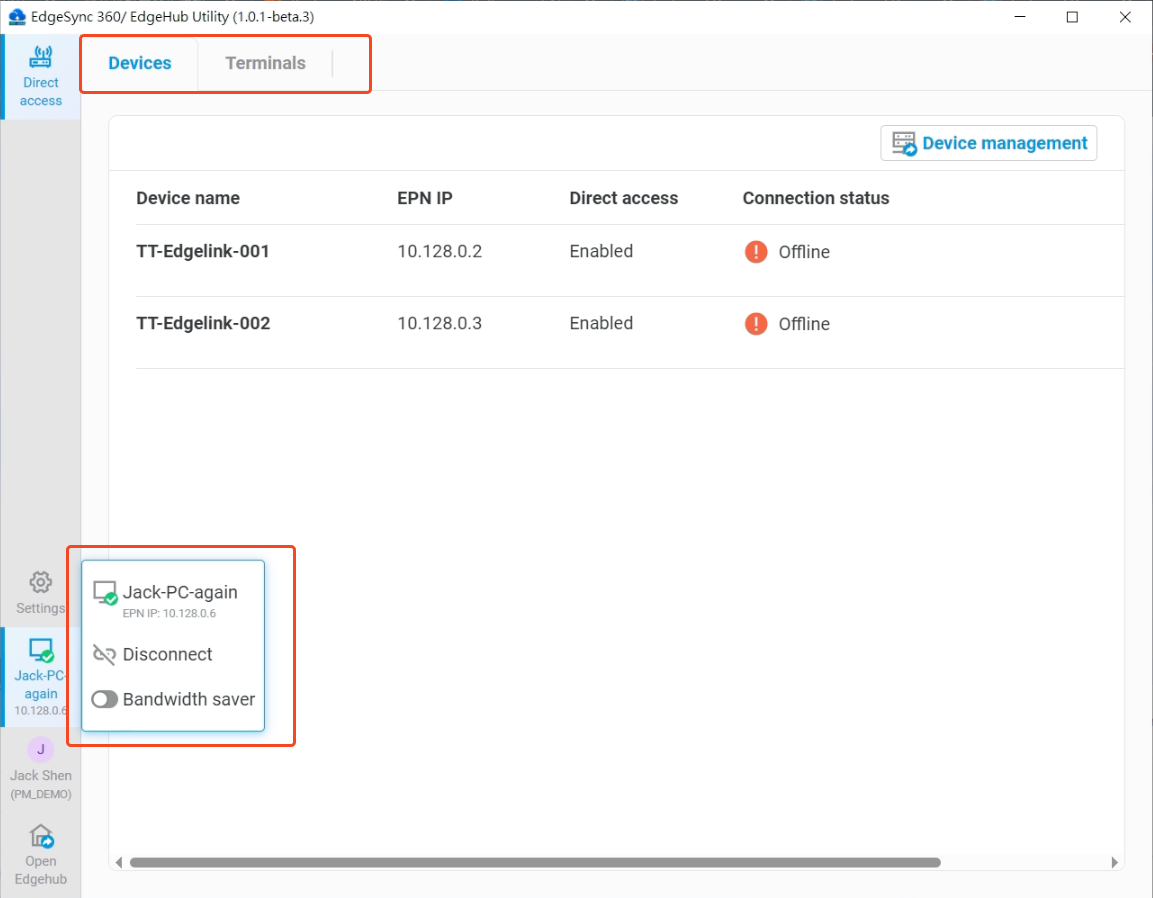

3.6 EdgeHub utility

Some functions's accessability are affected by tenant role, includes:

Function	Related scope	Required scope permission
Device list	Device Configuration	Manage, View
Connect / Disconnect device	Device Configuration	Manage
Terminal list	Terminal Configuration	Manage, View
Add / Edit / Delete terminal	Terminal Configuration	Manage
EpnClient Connect / Disconnect (on main window)	(Utility) EpnClient operation	Manage, View
Register EpnClient (on main window / tray menu)	(Utility) EpnClient operation	Manage
Edit EpnClient (on main window)	(Utility) EpnClient operation	Manage
Enable / Disable BandwidthSaver (on main window)	(Utility) EpnClient operation	Manage

The following table shows how each scope mentioned above is configured under the default roles

Scope	Admin	Engineer	Editor	Operator	Viewer
Device Configuration	Manage	Manage	Manage	View	View
Terminal Configuration	Manage	Manage	Manage	View	View
(Utility) EpnClient operation	Manage	Manage	Manage	View	View
