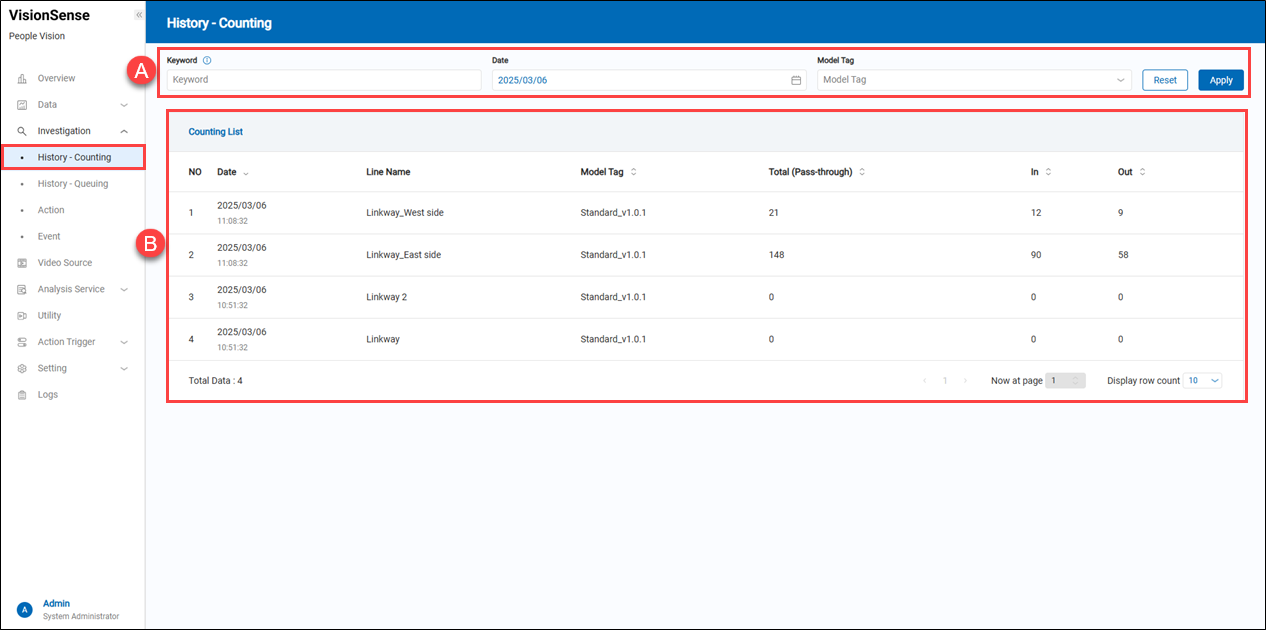

History - Counting

The History - Counting feature allows users to review past people-counting data, helping analyze historical trends and assess crowd flow changes. Users can access data based on specified dates and view it in list format.

A.【Filtering】 ⇒ Users can quickly search for a people-counting unit's history by following conditions.

• Keyword: Users can quickly search for a people-counting unit's name by keyword.
• Date: The date that users want to search.
• Model Tag: The AI model that users want to search for.

B.【Historical Records】 The people-counting data for the day can be displayed based on different video sources.

• Date: Display minute-by-minute records for a one-day period.
• Line Name: Display the people-counting unit's name.
• Model Tag: The AI model that was used.
• Total(Pass-through): This stistical number is the sum of the 'Entry(In)' and 'Exit(Out)' statistics.
• In / Out: Display the 'In' (Entry) and 'Out' (Exit) statistics within the period.

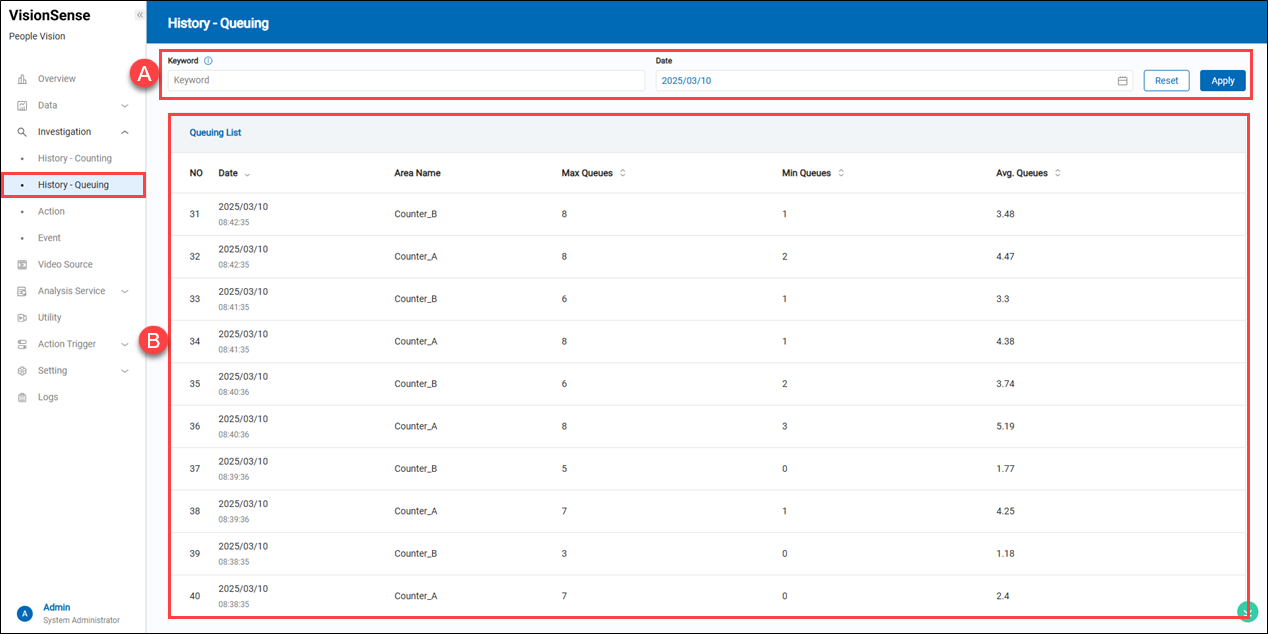

History - Queuing

The History - Queuing feature allows users to review past queuing data, helping analyze historical trends and assess changes in the number of queuing people. Users can access data based on specified dates and view it in list format.

A.【Filtering】 ⇒ Users can quickly search for a queuing unit's history by following conditions.

• Keyword: Users can quickly search for a queuing unit's name by keyword.
• Date: The date that users want to search.

B.【Historical Records】 The queuing data for the day can be displayed based on different queuing units.

• Date: Display minute-by-minute records for a one-day period.
• Area Name: Display the queuing unit's name.
• Max Queues: Display the maximum number of queuing people per minute.
• Min Queues: Display the lowest number of queuing people per minute.
• Ava. Queues: Display the average number of queuing people per minute.

Action

The Triggered Action History feature allows users to query action notifications triggered by queue numbers reaching system-defined alarm conditions. This feature provides a review of past events, helping users analyze queuing situations and system responses. Through this feature, users can easily track each triggered alarm event and gain deeper insights into the specific time and conditions under which it occurred, further enhancing queue management and decision-making efficiency.

> Remark Users must enable the action trigger function for the queuing zone in order to have triggered action history records available for querying.

A.【Filtering】 ⇒ Users can use the display filters to narrow down results by the name of the queuing zone, tag, action name, or utility name, with a date range.

B.【Historical Records】 Display the historical trigger action event records.

• Datetime: Shows the date and time when the action was triggered.
• Video Source: Indicates the camera source associated with the triggered action.
• Detection Info: Displays the detection region name and the tag information associated with the action.
• Action Name: Displays the name of the trigger action used in the event.
• Trigger Event: Indicates whether the event classification function is enabled.
• Rule: Display the rule conditions for the action event.
• Utility: Display the utility used in the action event.

C.【Export】 Click the 'Export' to export the historical data of the action trigger into an Excel file.

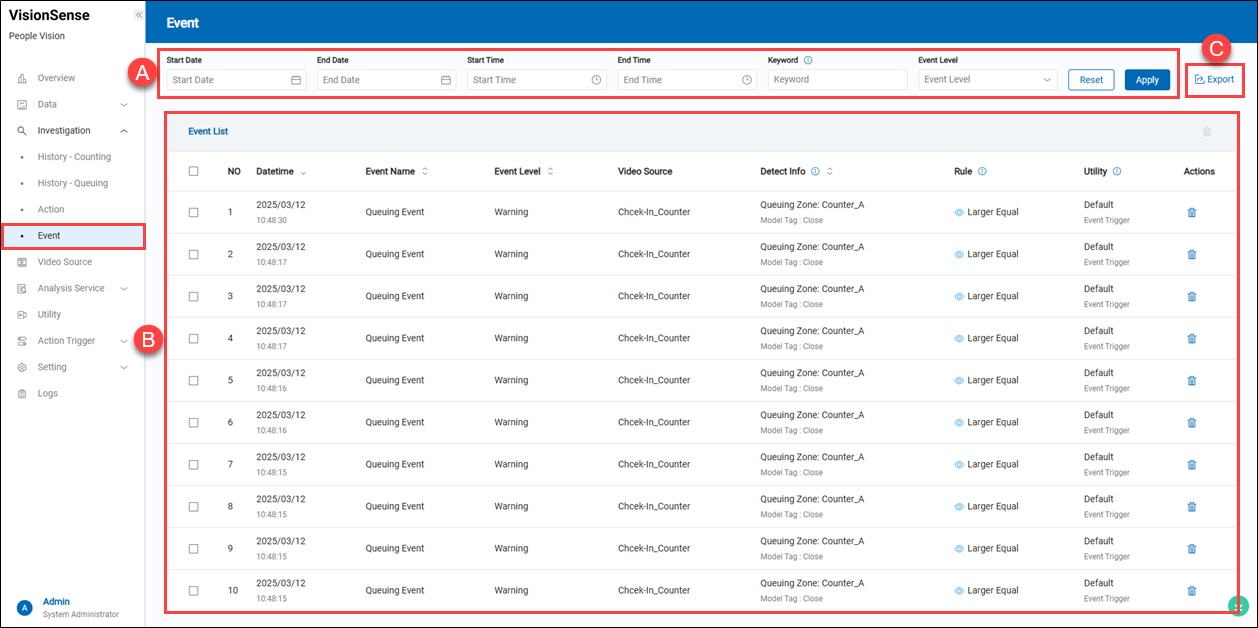

Event

The event history function allows users to inquire about event records generated when the number of people in a queue reaches the system-defined alert threshold. This feature provides a review of past events, helping users analyze queue conditions. With this function, users can easily check each triggered event caused by the system's queue limit rules and gain detailed insights into the specific time and related conditions of each occurrence. This further enhances the efficiency of queue management and decision-making.

A.【Filtering】 ⇒ Users can use the display filters to narrow down results by the name of the queuing zone, tag, event name, utility name, or event level with a date range.

B.【Historical Records】 Display the historical queue event records.

• Datetime: Display the time the event happened.
• Event Name: Display the event name of the 'Event Trigger' setting.
• Event Level: Display the event level. The event level has two types: 'Warning'and'Critical.'
• Video Source: Display the queuing unit's name.
• Detection Info: Displays the detection region name and the tag information associated with the action.
• Rule: Display the rule conditions for the action event.
• Utility: Display the utility used in the event.
• Actions: This function allows users to delete the event records.

C.【Export】 Click the 'Export' to export the historical data of the action trigger into an Excel file.

> Remark Users must enable the action trigger function for the queuing zone in order to have triggered action history records available for querying.
