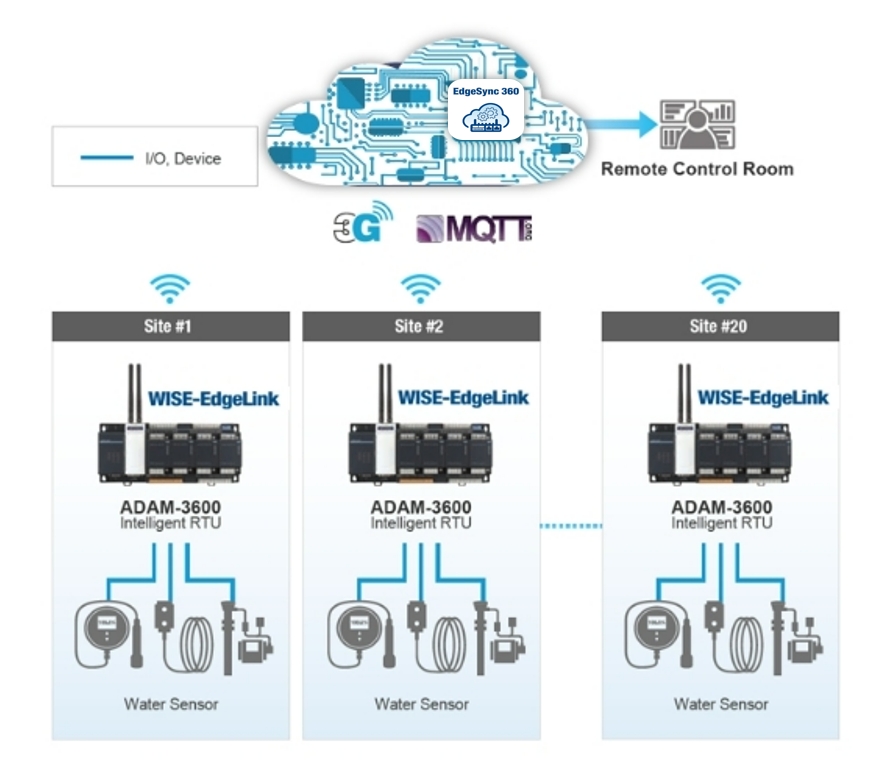

Advantech’s ADAM-3600 edge sensing device-to-cloud solution provides data collection, preprocessing, and transmission forwarding that enables the efficient develop an automated wastewater monitoring system that complies with both factory system and government requirements.
Transmits data with MQTT from nearly 20 types of water quality sensors at various test stations to a unified management cloud platform.
Data filtering and multi-point transmissions.
WISE-EdgeLink supports multiple communication protocols to connect with installed PLCs and the various sensors employed for physical signal collection.

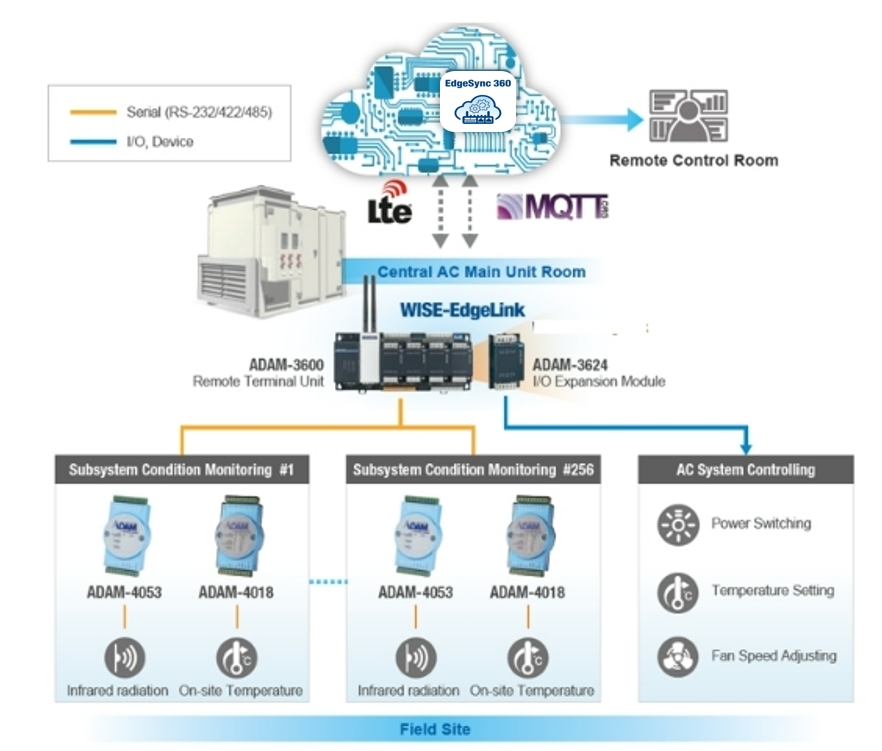

The AC equipment manufacturer embraced cloud computing technology to design auxiliary equipment for central AC systems in office buildings. The company hoped to enhance efficiency, analysis, and prediction by gathering comprehensive data from dispersed subsystems.
The project required three functional areas: data collection, pre-processing, and transmission
ADAM-3600 with WISE-EdgeLink: performed data collection from the main AC unit. All data was sent into the build-it WISE-EdgeLink for communication protocol conversion.
ADAM-4018: temperature measurement module.
ADAM-4053: collected data from over 200 AC subsystems throughout the entire building and sending the data to the ADAM-3600.
