BACnet IP(TCP/IP)
1.Driver support start version number:
2.Add Meter

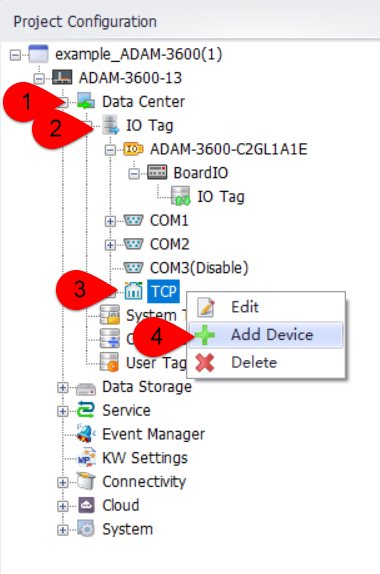

- DataCenter--->I/O点--->TCP--->Right Click：Add Device

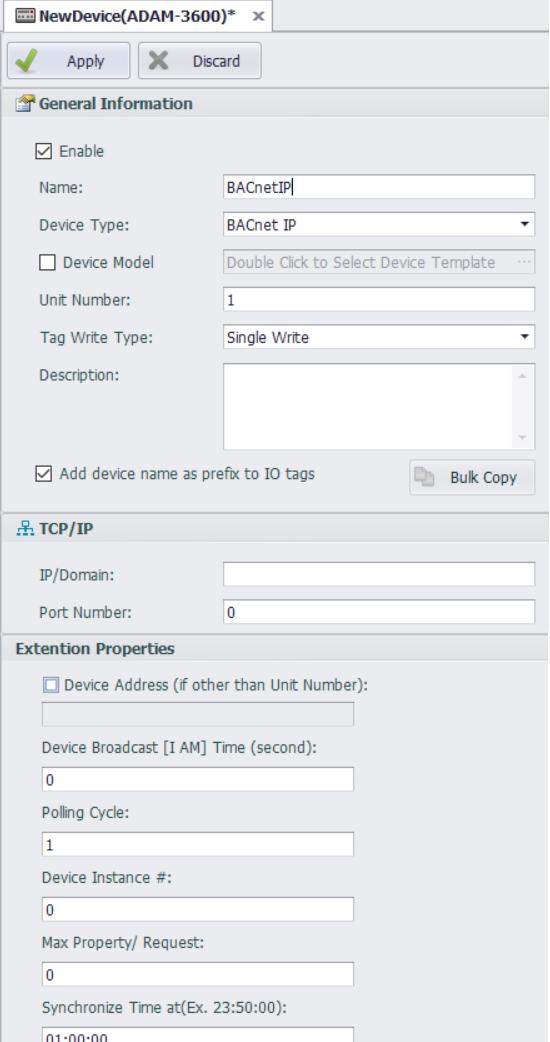

- Name: Fill in as you please。
- Device Type: Select BACnet IP。
- IP/Domain Name: The IP address of the BACnet server。
- Port Number: The port number of the BACnet server。
- Device Broadcast[I AM] Time (second)：Frequency of EdgeLink sending "I AM" messages。
- Polling Cycle：Data Collection Period
- Device Instance #：Device Instance ID of the BACnet server。
- Max Property/Request： 0 means polling 70 points in one round, and other values mean the number of points configured for one round of polling。
- Synchronize Time at (Ex. 23:50:00) ：Sync time with server at a certain time 。
- After configuring the above parameters, click "Apply" to add it. Click "Cancel" to cancel the operation。
3.Add tag

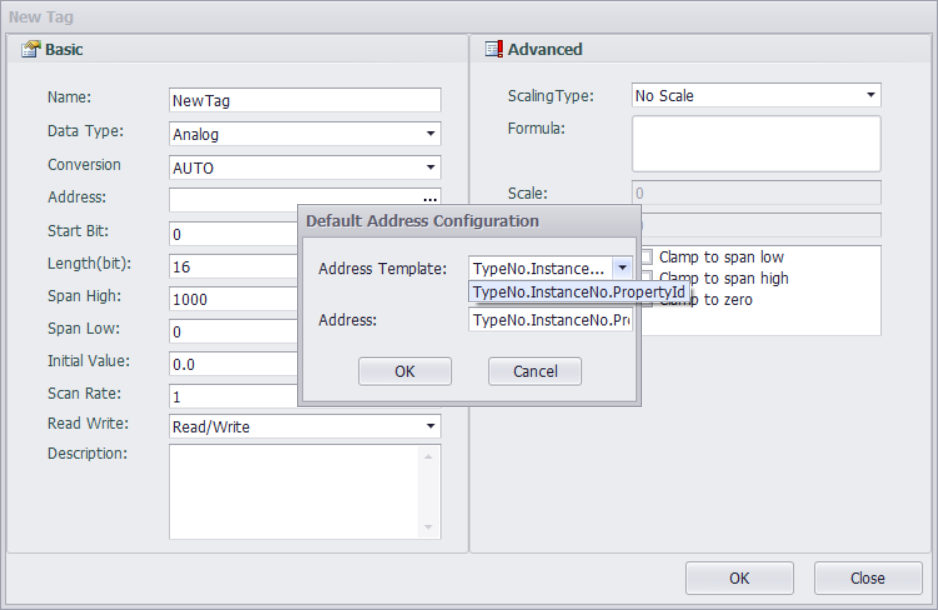

1).Fill in or select the parameters on the above interface according to the requirements, and click "OK" to save the changes。
2).Tag point address format：TypeNo.InstanceNo.PropertyId
-
TypeNo：Representing the type number。The driver protocol supports six types: Analog Input, Analog Output, Analog Value, Binary Input, Binary Output, and Binary Value：
Type TypeNum Analog Input 0 Analog Output 1 Analog Value 2 Binary Input 3 Binary Output 4 Binary Value 5 -
InstanceNo：Tag point sequence number in the server。
-
PropertyId：Please refer to the Bacnet protocol。
example：The Property ID for "Present Value" in BACNet is 85 。 The address example for reading "Present Value" is as follows:
Type and index Address AI_2 0.2.85 AO_2 1.2.85 AV_2 2.2.85 BI_2 3.2.85 BO_2 4.2.85 BV_2 5.2.85
4.FAQ
4.1.ErrorCode
| ErrorCode | Description |
|---|---|
| GOOD | No error |
| C010 | Device Idle, I-AM timeout |
| C002 | Data type mismatch |
| A00X | iscrete value over max state |
| QCode bit coded | 0001 in alarm, 0002 Fault, 0004 Overridden, 0008 Out of service |
| b014 | No space to write property |
| b01b | Read access denied |
| b01f | Unknown object |
| b020 | Unknown property |
| b025 | Value out of range |
| b028 | Write access denied |
| b02a | Invalid array index |
| b02f | Datatype not supported |
| b030 | Duplicate name |
| b031 | Duplicate object id |
| b032 | Property is not an array |
| b033 | Abort buffer overflow |
| b034 | Abort invalid apdu in this state |
| b035 | Abort preempted by higher priority task |
| b036 | Abort segmentation not supported |
| b037 | Abort proprietary |
| b038 | Abort other |
| b03b | Reject buffer overflow |
| b03c | Reject inconsistent parameters |
| b03d | Reject invalid parameter data type |
| b03e | Reject invalid tag |
| b03f | Reject missing required parameter |
| b040 | Reject parameter out of range |
| b041 | Reject too many arguments |
| b042 | Reject undefined enumeration |
| b043 | Reject unrecognized service |
| b044 | Reject proprietary |
| b045 | Reject other |
| b050 | Parameter out of range |
| b07b | Abort apdu too long |
| b07c | Abort application exceeded reply time |
| b07d | Abort out of resources |
| b07e | Abort tsm timeout |
| b07f | Abort window size out of range |
| b0100 | Loss of port connection |
| b0101 | Header timeout error |
| b0102 | Data timeout error |
| b0103 | NPDU Timeout error |
| b0104 | Header CRC error |
| b0105 | Data CRC error |
| b0106 | Non-NPDU message error |
| b0107 | Timeout error |
| b0108 | Serial port error |
| b0109 | Invalid Write Properity Error |
| b010a | Invalid Read Properity Error |
| b010b | No valid read data |
| b010c | Unsupported Frame Type |
| b010d | Error in the MS/TP Network |
| b010e | Unknown Data Type to write |
| b010f | Invalid Destination MAC Address |
| b0110 | Invalid Source MAC Address |
| b0111 | Invalid Header Information |
| b0112 | Unable to get a valid Invoke ID |
