IEC104

一、Driver support start version number：

二、Quick Connection

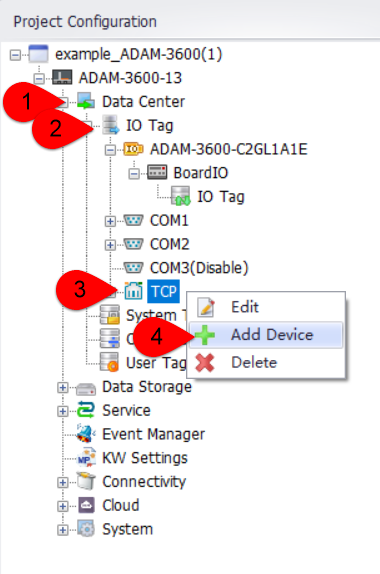

1.Add Device

• DataCenter--->I/O Tag--->TCP--->Right Click：Add Device

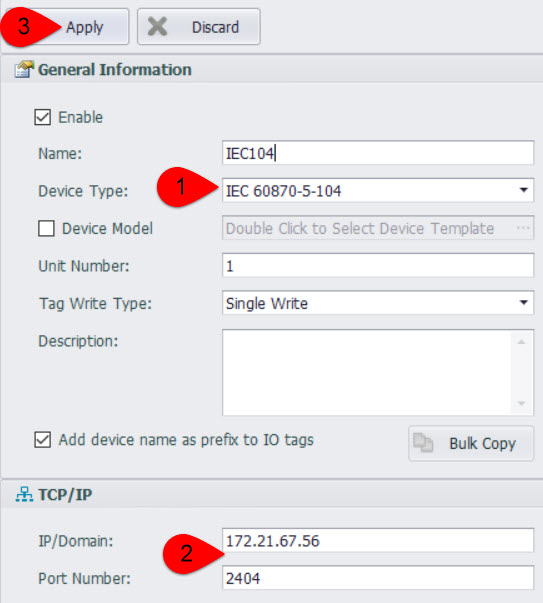

2.Configure the device

• Select Device Type：IEC 60870-5-104--->Fill in the IEC104 server IP and port number: such as 172.21.67.56 and 2404--->click "Apply"

3.Add tag(s)

4.Download project，completed the quick configuration of IEC104.

三、Detailed configuration instructions

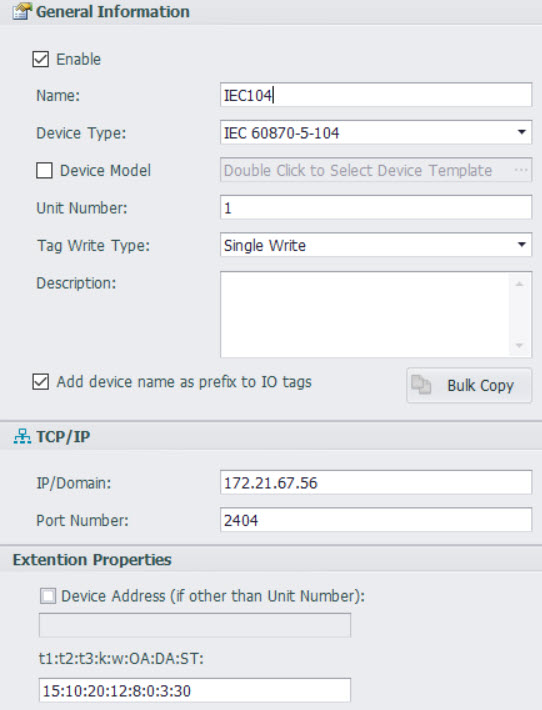

1.Detailed configuration interface instructions

• Name: Fill in as desired.

• Device Type: Select IEC 60870-5-104.

• IP/Domain Name: The IP address of the IEC104 server.

• Port Number: The port number of the IEC104 server.

• t1:t2:t3:k:w:OA:DA:ST：

  • t1：1~255 seconds, Refer to the IEC104 protocol for specific requirements.
  • t2：1~600 seconds, Refer to the IEC104 protocol for specific requirements.
  • t3：1~600 seconds, Refer to the IEC104 protocol for specific requirements.
  • k： 1~32767, Refer to the IEC104 protocol for specific requirements.
  • w： 1~32767, Refer to the IEC104 protocol for specific requirements.
  • OA：Master Address，Refer to the IEC104 protocol for specific requirements.
  • DA：Slave public address.
  • ST：Scan time. 1 ~3000 seconds.

2. Detailed description of tag point configuration

   There are three types of Tag.

   A. Read Only Tag Format: R:Read Address / Read Data Type / Read Command
   Example: R:402 / M_BO_NA_1 / n

   B. Write Only Tag Format: W:Write Address / Write Command
   Example: W:2300 / C_RC_NA_1 Note: Always show value 0 for this kind of tag

   C. Read And Write Tag Format: R:Read Address / Read Data Type / Read Command / W:Write Address / Write Command Example: R:400 / M_BO_NA_1 / n / W:2400 / n

Note: Add /SE after Write Command to change “Direct Execute” to “Select and Execute”

• Read And Write Tag Format: R:Read Address / Read Data Type / Read Command / W:Write Address / Write Command / SE Example: R:100 / M_SP_NA_1 / n / W:2100 / n / SE
• Write Only Tag Format: W:Write Address / Write Command / SE Example: W:2100 / C_SC_NA_1 / SE
