AI data acquisition and parameter setting　

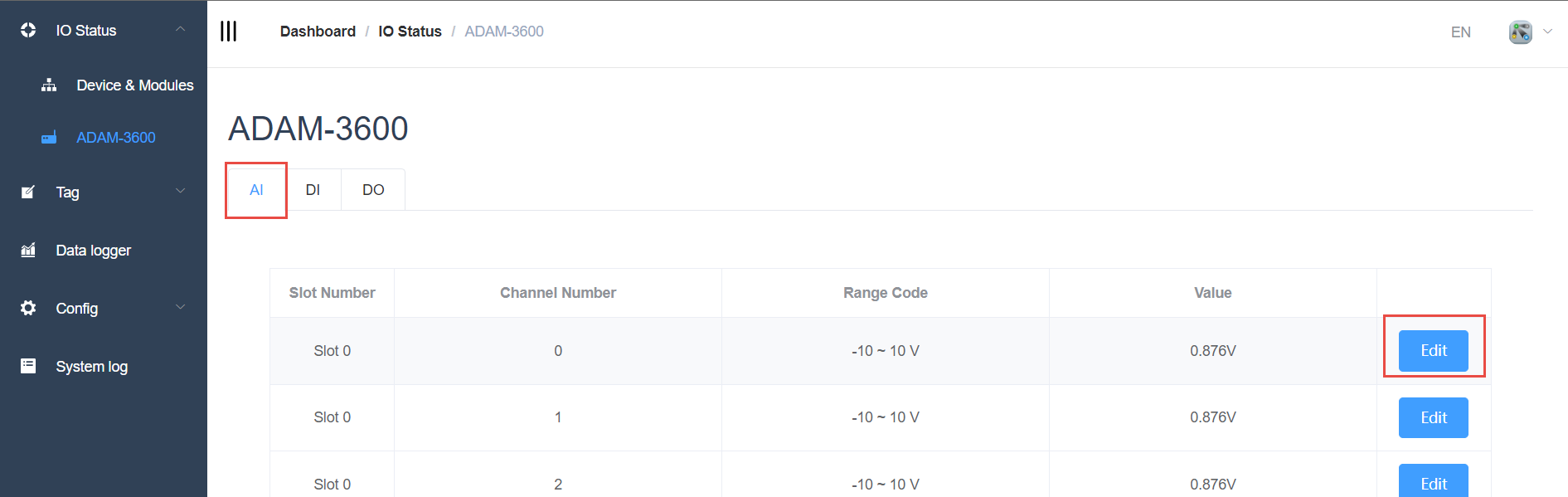

The data of the AI module is shown in the figure below. The data form items are as follows:

• Slot number: The module where the AI function block is located, and slot 0 is onboard.

• Channel number: AI channel number.

• Range: The range of AI sampled values.

• Value: The value of the AI.

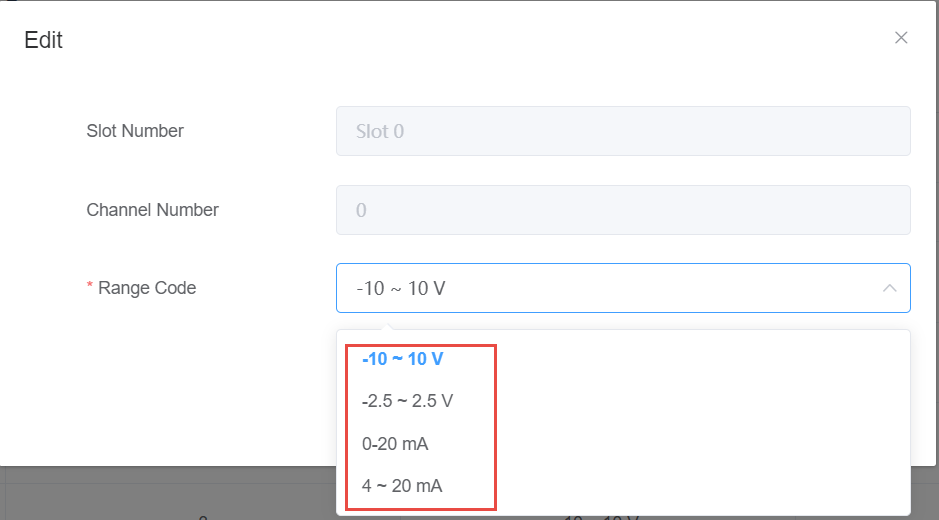

  When you need to configure parameters, click the Edit button



  Note: After the parameter is modified, you need to click the Confirm button to take effect
