Action Trigger

After adding the devices or commands that should be triggered to People Vision, users must specify a condition (trigger rule) for when to trigger these actions.

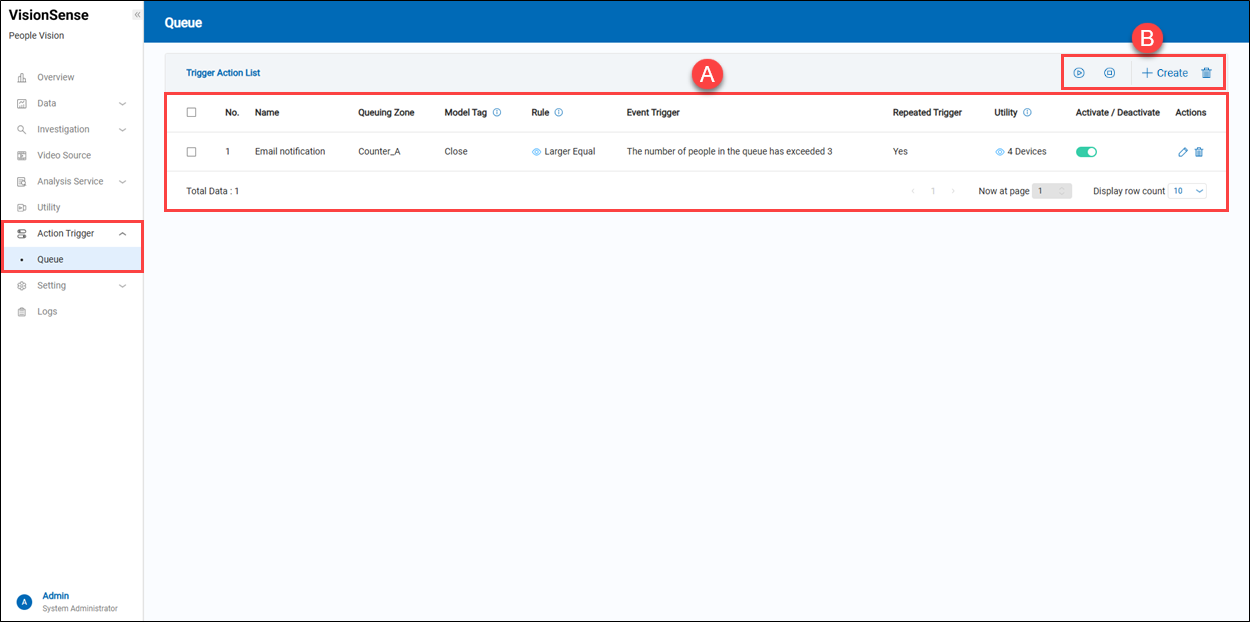

Action Interval_Queue_List.png A.【Trigger Action List】 ⇒ List all added trigger actions below.

  • Name: It displays the name of the added trigger action.
  • Queuing Zone: It displays the unit name of the queuing zone.
  • Model Tag: It displays whether the model tag function is being used or not.
  • Rule: It displays the current rule of the trigger action being used.There are two types of logical judgment rules: 'Larger Equal' and 'Smaller Equal.'
  • Event Trigger: It displays the event name of the trigger action.
  • Repeated Trigger: It displays the current 'Repeated Trigger' function status.
  • Utility: It displays the current utilities being used for this action trigger function. Users can hover over the icon_View.jpg 'View Details' to see how many utilities are being used.
  • Activate / Deactivate: A toggle switch enables the trigger action when turned on and disables it when turned off.
  • Actions: Click the icon_編輯.jpg 'Edit' to enter the edit page or click the icon_刪除.jpg 'Delete' to delete the assigned item.

B.【Operation】

  • Delete: Click the icon_刪除.jpg 'Delete' to delete multiple selected items.
  • Activate / Deactivate: Click the Icon_Enable.png 'Activate' to activate multiple selected items or the Icon_Disable.png 'deactivate' to deactivate them.

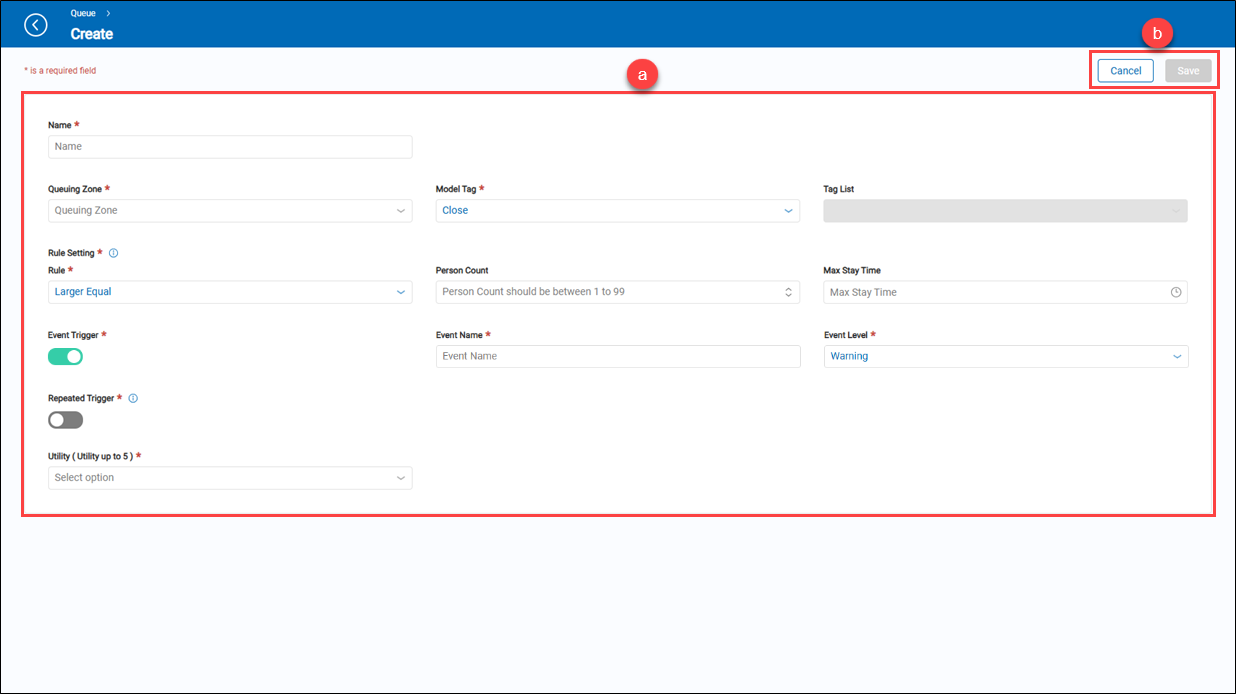

  • + Create: Click the Icon_+Create_normal.png '+ Create' to create a new trigger action. Action Interval_Queue_Create.png

a.【Create Trigger Rule】

  • Name: A user-friendly name to help identify this trigger rule.
  • Queuing Zone: Select a queue zone to monitor. It needs to be used with a Model Tag and Tag Type.
  • Model Tag: ‘Close’ means that it won’t detect any tag type. ‘Contain Tags’ means that it is used with tag type to specify the detection of specific object tags. ‘Exclude Tags’ means that it is used with tag types to exclude specific object tags.
  • Tag List: List the supported object types and select the object tags you want to recognize; it needs to be used in conjunction with the model tag. For simple people detection, there is no need to choose.
  • Rule: ‘Larger Equal’ and ‘Smaller Equal’ are logic judgment settings. Choose the appropriate setting based on the scenario.
  • Person Count: It is used to calculate how many people are in the queue zone, and it is one of the trigger conditions for the rule.
  • Max Stay Time: It is used to calculate the dwell time of people in the queue zone, and it is one of the trigger conditions for the rule.
  • Event Trigger: Assign an event level to this event trigger, such as "Warning" or "Critical." Currently, it is only used for event level classification and is not involved in trigger rule evaluation.
  • Repeated Trigger: It is a function switch. ‘Close’ means that when the condition persists, it only triggers when the condition matches current condition; it will not be triggered again until condition is met again. ‘Open’ means that when the condition persists, it continuously triggers according to the action interval setting.
  • Utility: The ancillary devices or HTTP commands that will be triggered (up to 5 can be selected per rule).

b.【Operation】 => Click the 'Save' to apply all settings or the 'Cancel' to cancel this operation and go back to the previous page.
