Compressor Station Overview

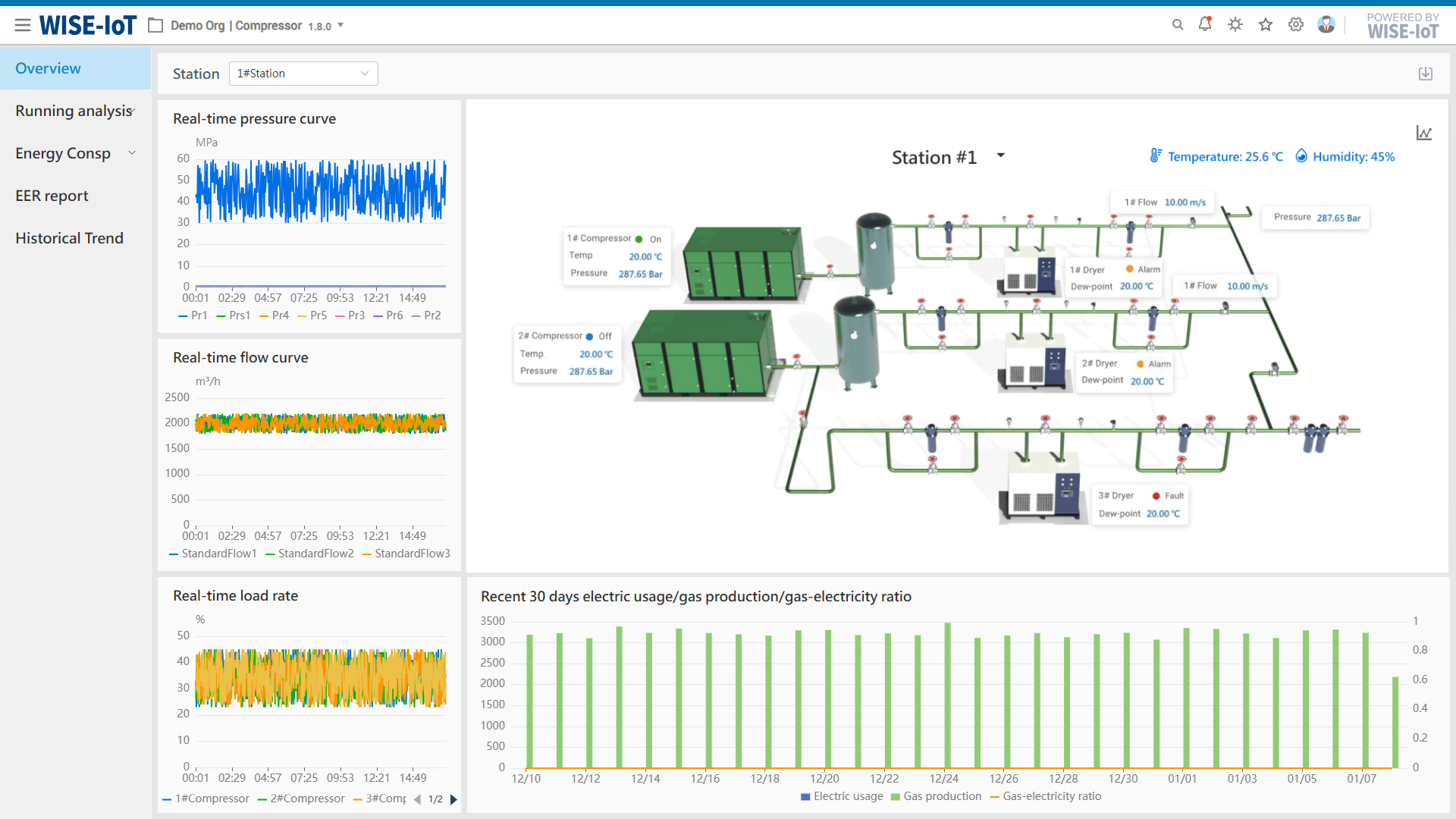

The Overview page allows viewing the overall energy efficiency of different compressor stations by switching between them. It mainly includes the following content:

(1) Operation Monitoring

Displays real-time pressure curves of each pressure detection point in the station, real-time flow data curves of each flow detection point, recent daily load rates of all compressors in the station, and data analysis of electricity consumption, air production, and air-electricity ratio of the entire station in the recent 30 days.

(2) Digital Twin Compressor Station Display

Presents the operation process diagram of each compressor station.

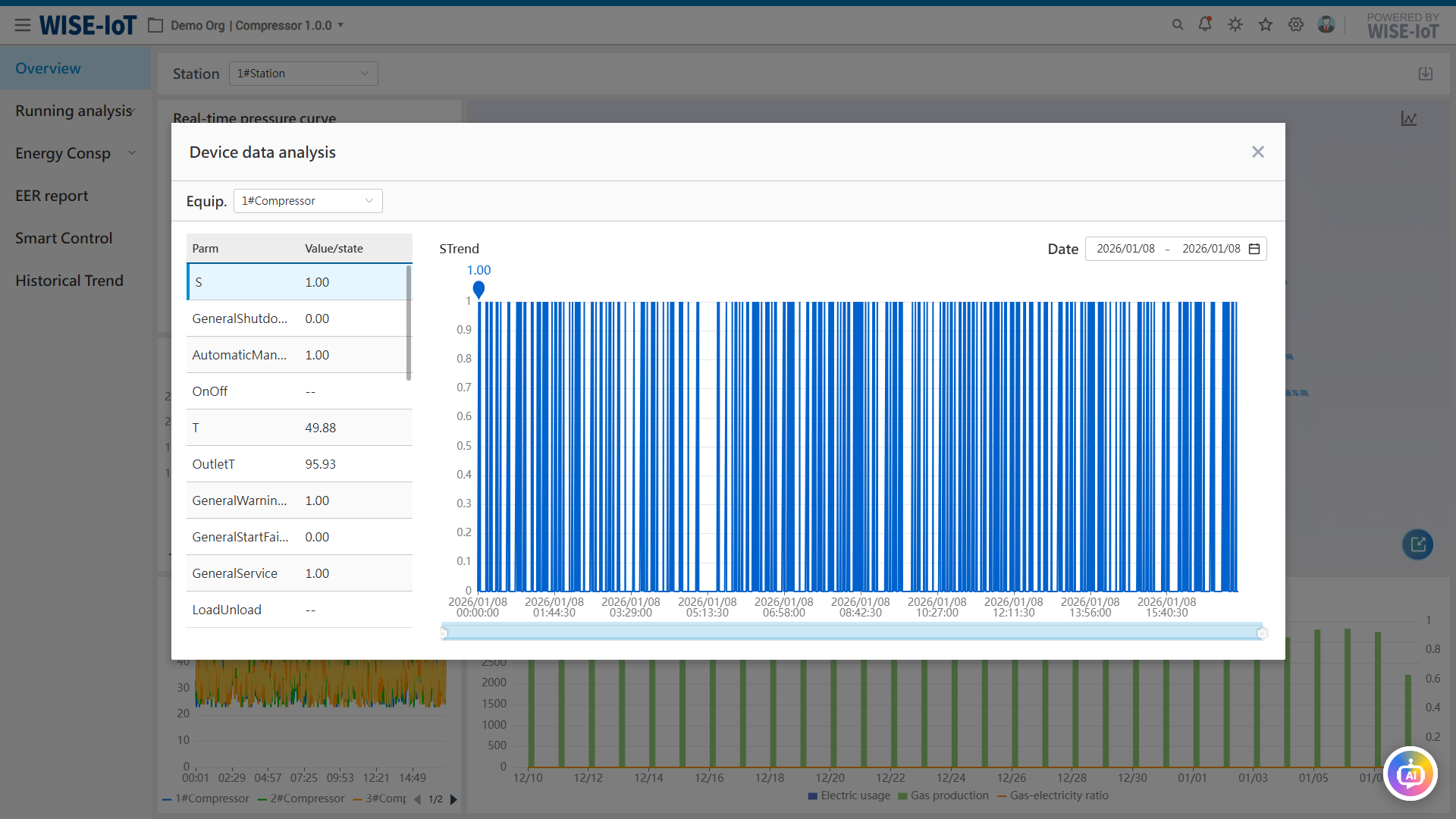

(3) Equipment Parameter Curves of Compressors

Click the icon on the process diagram to access the page shown below.

(4) Download of Compressor Station Analysis Data

Click the download icon in the upper right corner to download the compressor load rates in the recent 7 days and the compressor data in the recent 30 days on the Overview page.

Note: The downloaded files are stored in the browser's default download location.
